QTY Series Automatic Block Production Lines

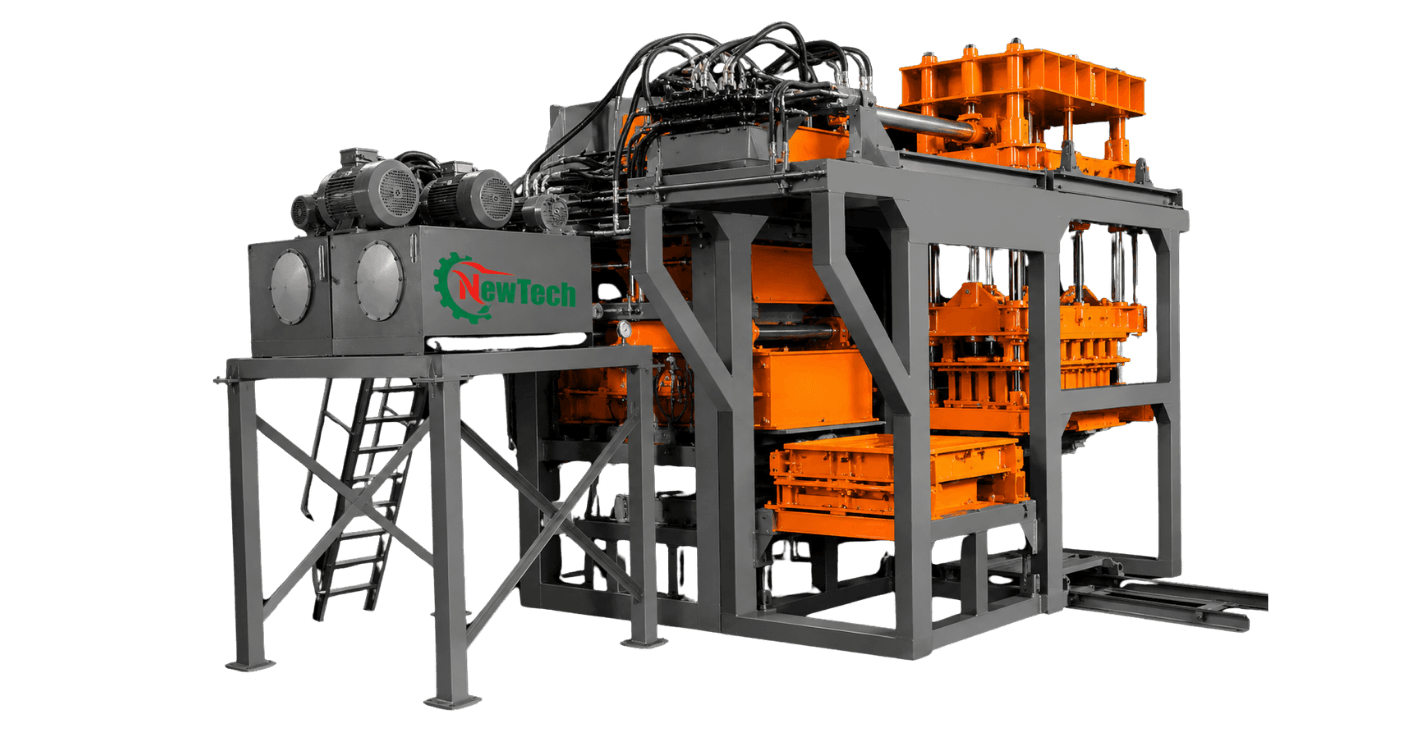

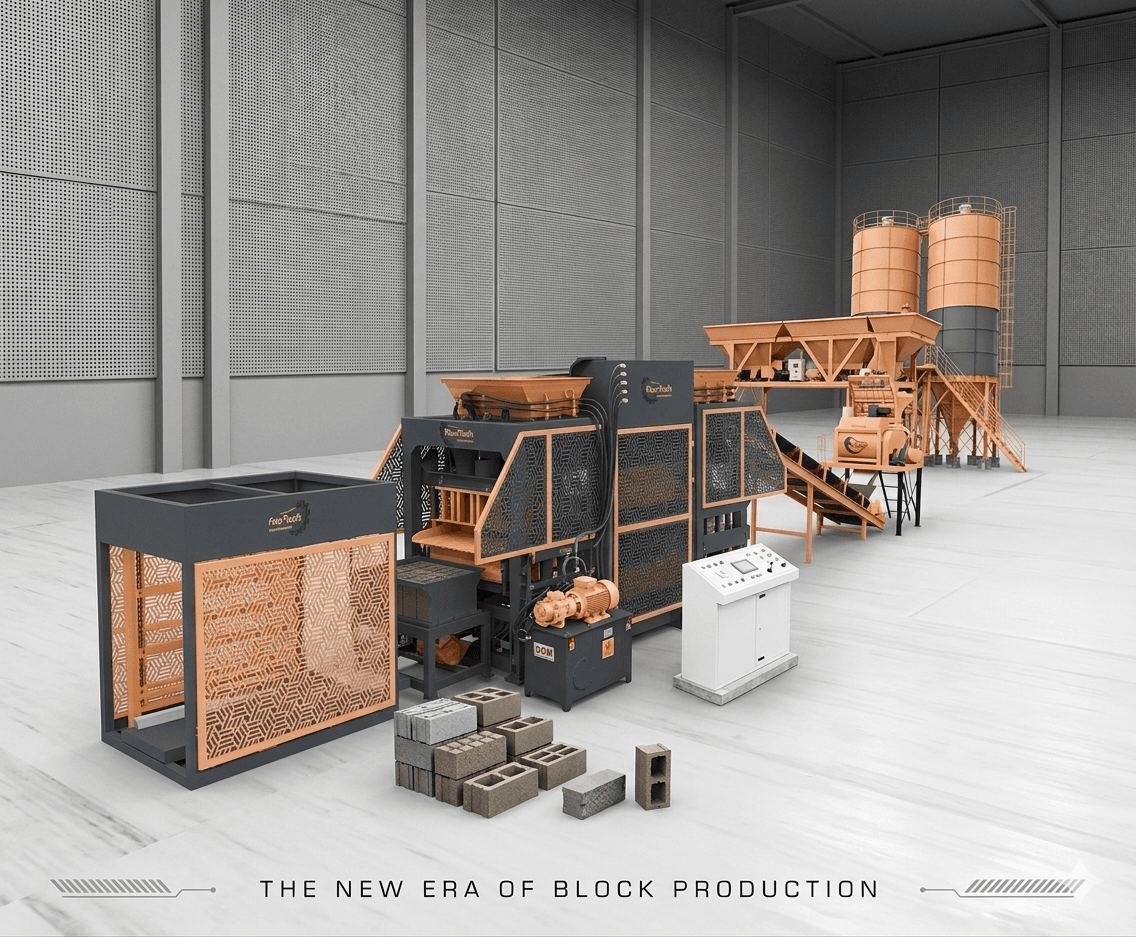

The QTY Series consists of high-performance automatic block production lines developed for medium to large-scale concrete product manufacturing plants. The series includes QTY8-15, QTY10-15, QTY12-15, QTY15-15 and QTY20-15 models, offering different pallet sizes, motor power, vibration force and production capacities.
Models
5 sizes
Block Types
14 types
Automation
Full + Stacking
Product overview
The QTY Series Automatic Block Production Lines provide scalable solutions for manufacturing hollow blocks, solid bricks, logo bricks, pavers, hollow bricks, I-shape pavers, road tiles, kerbstones, edging blocks, drainage blocks and grass paving blocks. Each model combines platform vibration, hydraulic operation, high vibration force and an interchangeable mould system. Customers can select a suitable model according to the required production capacity, available factory space, pallet size and project investment. The series ranges from the compact QTY8-15 with 45 kW motor power to the industrial QTY20-15 with 90 kW motor power and 150-160 kN exciting force. NewTech Engineering Ltd. provides production line planning, installation guidance, operator training and after-sales technical support.

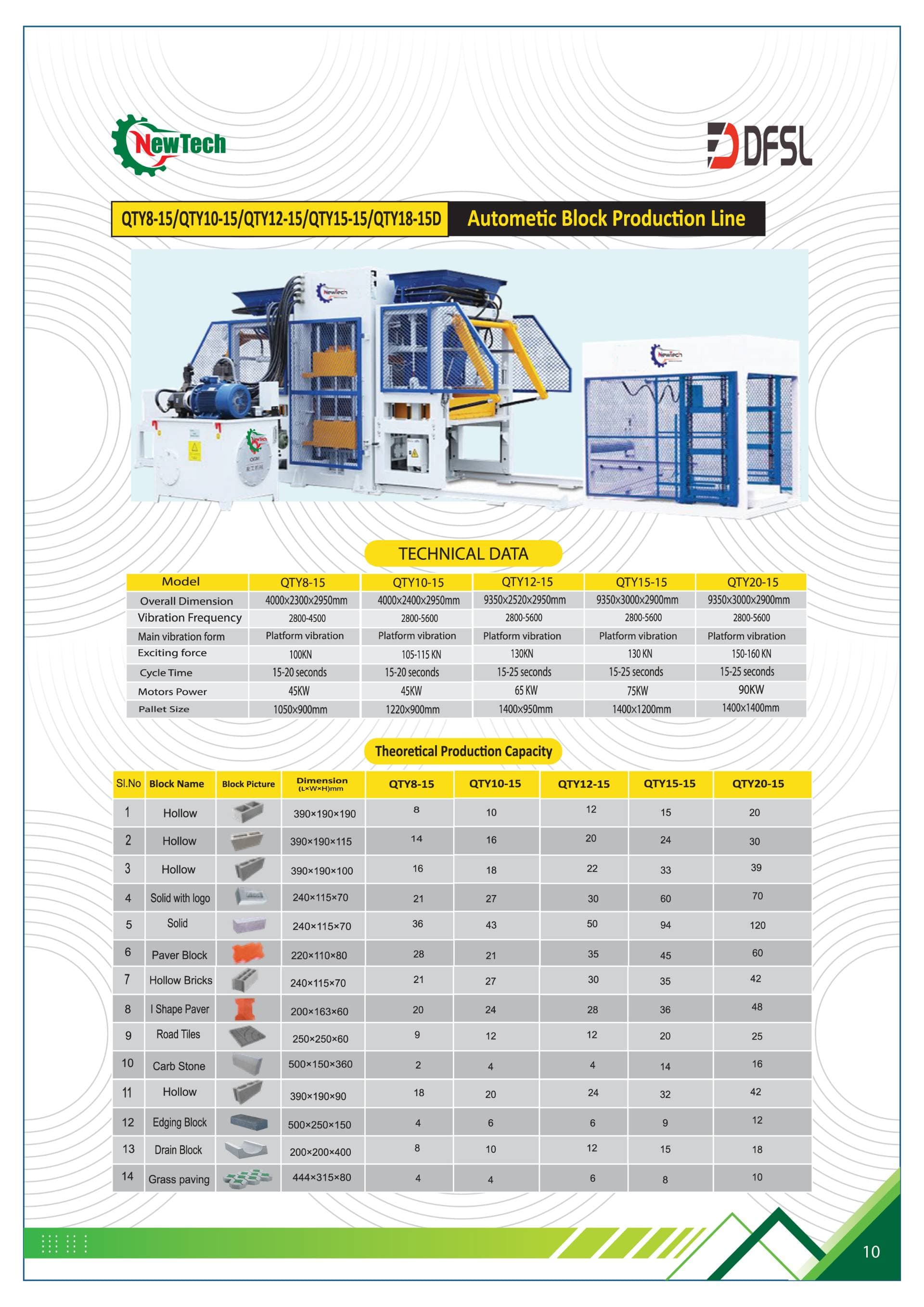

Key specifications
- Model Range
- QTY8-15 / QTY10-15 / QTY12-15 / QTY15-15 / QTY20-T1
- Overall Dimensions
- 4000x2300x2950 - 5500x3000x3600 mm
- Vibration Frequency
- 200-400 - 300-400 rpm
- Exciting Force
- 10-15 - 15 KN
- Cycle Time
- 15-17 - 12-15 seconds
- Machine Power
- 45 - 90 KW
| Format | Cycle | Per hour |
|---|
