QT2-25B/C Automatic Block Production Line
Versatile automatic block production line producing 10 different block types including hollow blocks, solid bricks, pavers, and curbstones.
Maximum Output
Up to 1,728 blocks/hour
Moulding Cycle
25–30 seconds
Vibration Force
30–40 kN
Rated Pressure
21 MPa
Total Project Power
25 kW
See it in action
Experience the engineering excellence of the QT2-25B/C Automatic Block Production Line. High-performance output meets precision control in this detailed demonstration.
Click to load video
Product overview
The QT2-25B/C Automatic Block Production Line is designed for medium to large-scale concrete block manufacturing plants. The machine combines 21 MPa rated hydraulic pressure with a 30–40 kN vibration system to produce strong, uniform and accurately shaped concrete products. By changing the mould, the production line can manufacture hollow blocks, solid logo blocks, solid bricks, paver blocks, hollow bricks, I-shape pavers, road tiles and curbstones. Depending on the mould configuration and product size, the machine can produce up to 1,728 solid blocks per hour. The machine features an 18.5 kW host machine motor, 25 kW total project power, a heavy-duty 3-tonne structure and an 810 × 710 mm pallet system. It is suitable for commercial block factories requiring versatile production, reliable operation and high daily output.
Key specifications
- Model
- QT2-25B/C
- Machine Type
- SemivAutomatic Block Production Line
- Host Machine Size
- 2400 × 1800 × 2430 mm
- Vibration Force
- 30–40 kN
- Rated Pressure
- 21 MPa
- Vibration Frequency
- 2800–4200 times/minute
- Host Machine Power
- 18.5 kW
- Total Project Power
- 25 kW
- Host Machine Weight
- 3 tonnes
- Pallet Size
- 810 × 710 × 25 mm
- Required Machine Shed Area
- Approximately 2,000 sq ft
- Recommended Land Area
- Approximately 40–50 decimals
- Moulding Cycle
- 25–30 seconds
| Block Name & Size | Block Picture | Making Period | Produced Per Mould | Production Capacity / Per Hour |
|---|---|---|---|---|

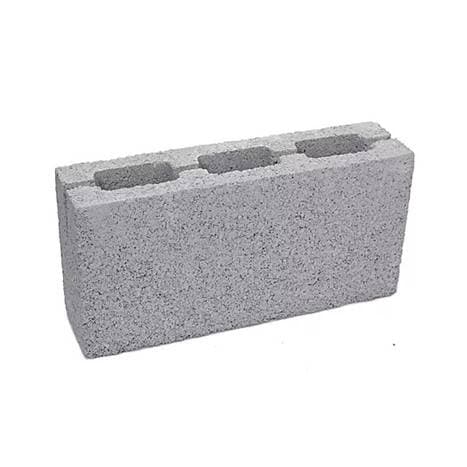

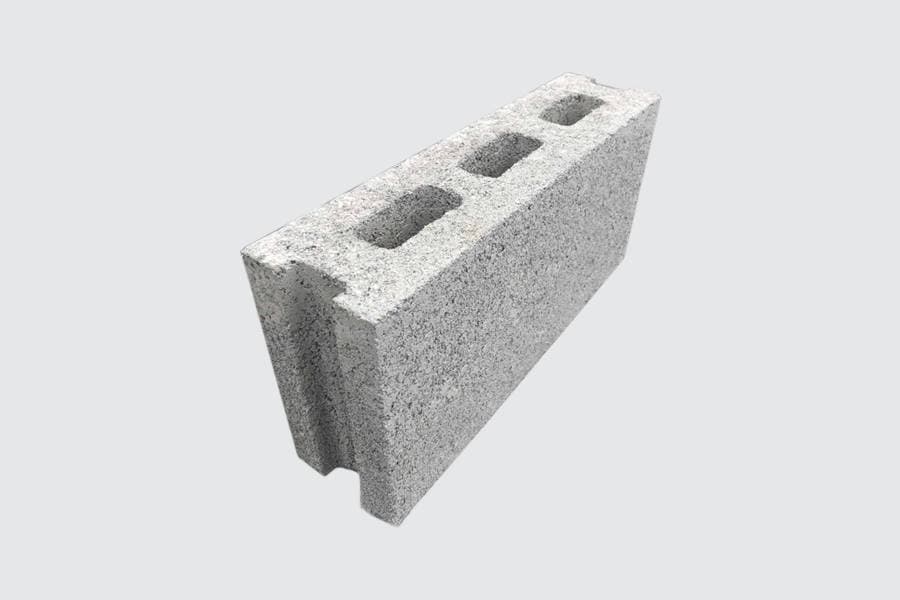

Hollow 390x190x190 |  | 25 - 30 s | 2 | 288 blocks/hour |
Hollow 390x190x115 |  | 25 - 30 s | 4 | 576 blocks/hour |
Hollow 390x190x100 |  | 25 - 30 s | 4 | 576 blocks/hour |
Hollow Block 390 × 190 × 90 mm |  | 25 - 30 s | 5 | 720 blocks/hour |

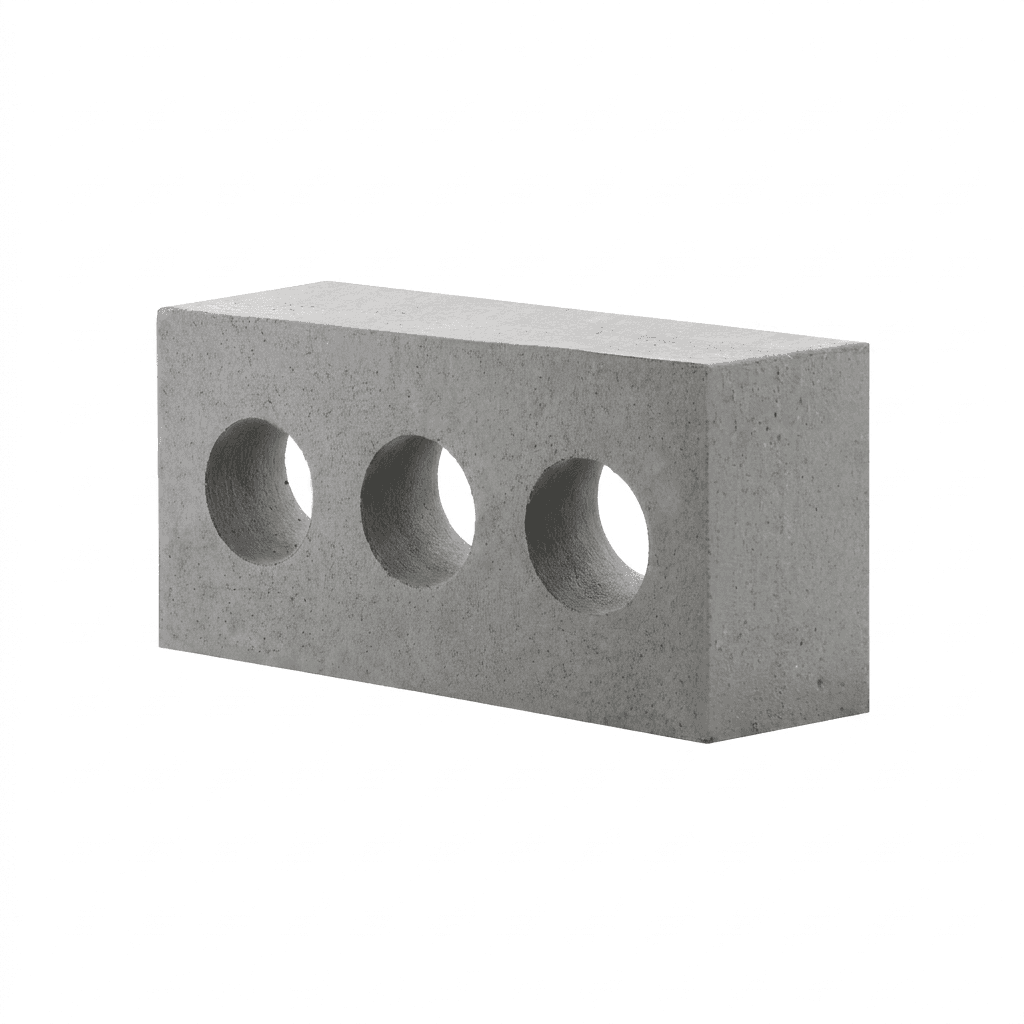

Hollow Brick 240 × 115 × 70 mm |  | 25 - 30 s | 8 | 1152 bricks/hour |

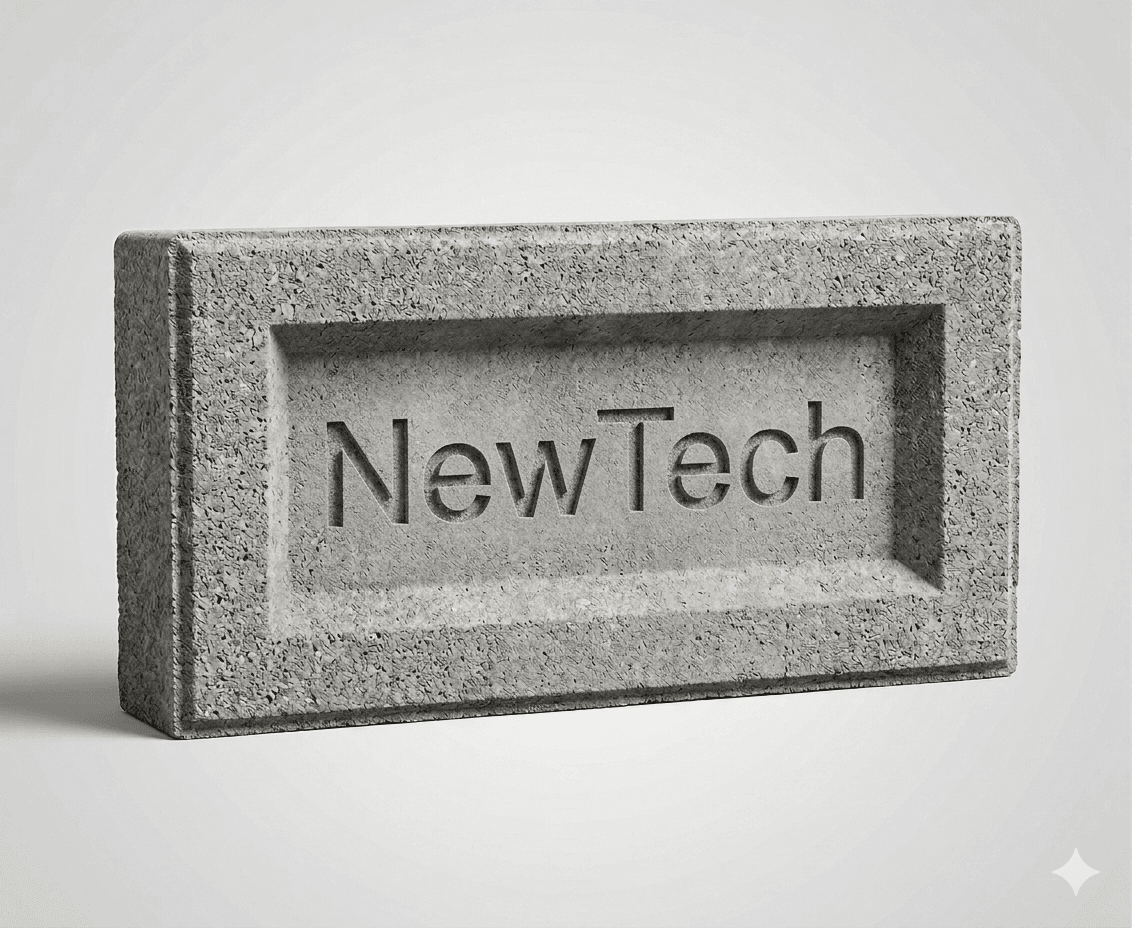

Solid Logo Brick 240 × 115 × 70 mm |  | 25 - 30 s | 8 | 1152 bricks/hour |

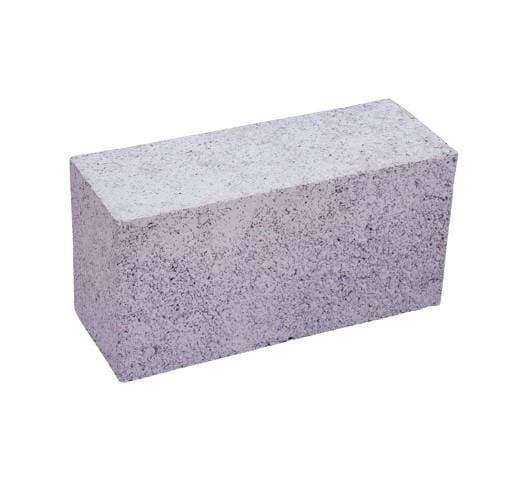

Solid Bricks 240 × 115 × 70 mm |  | 25 - 30 s | 12 | 1728 bricks/hour |

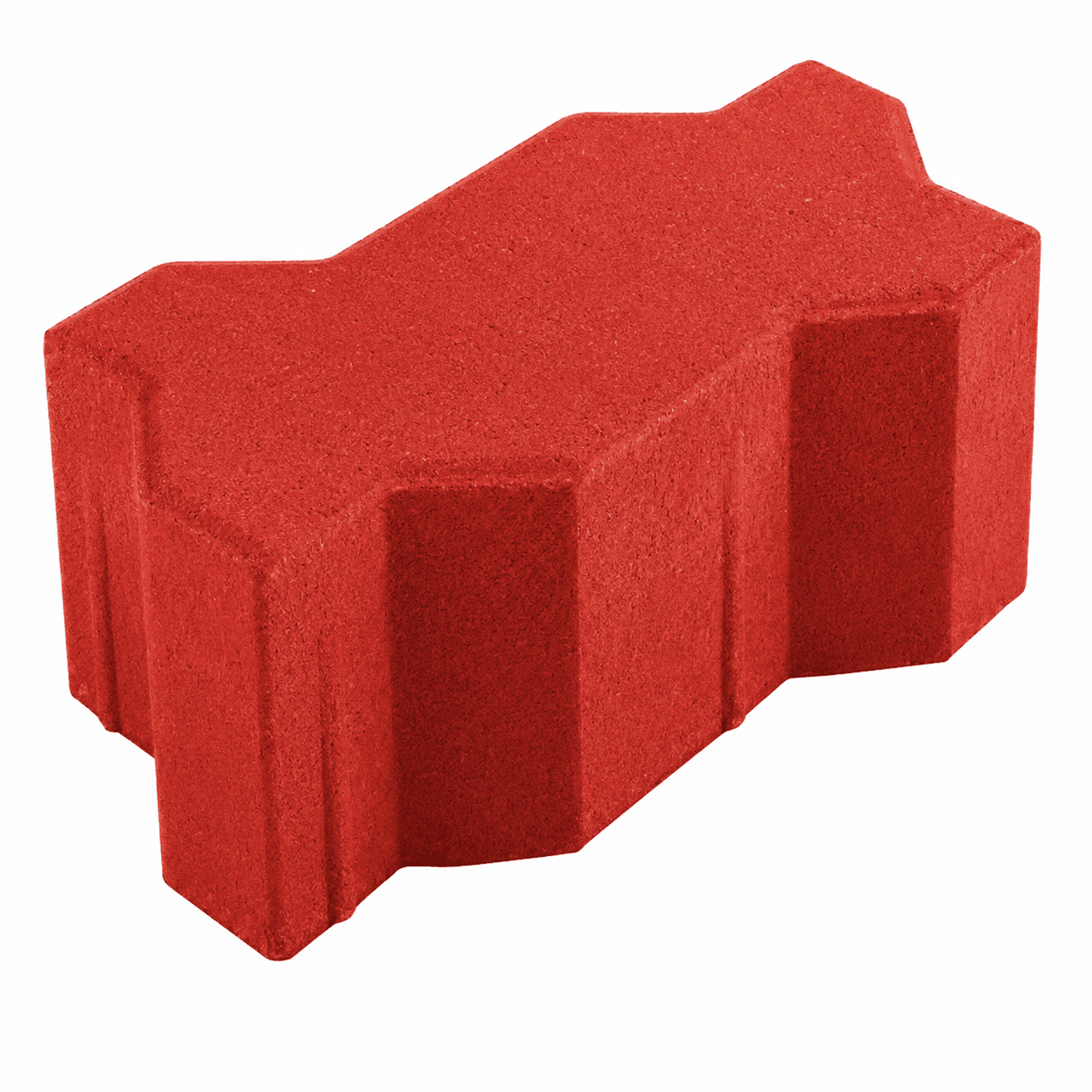

Uni Paver Block 220 × 110 × 80 mm |  | 25 - 30 s | 8 | 1152 blocks/hour |

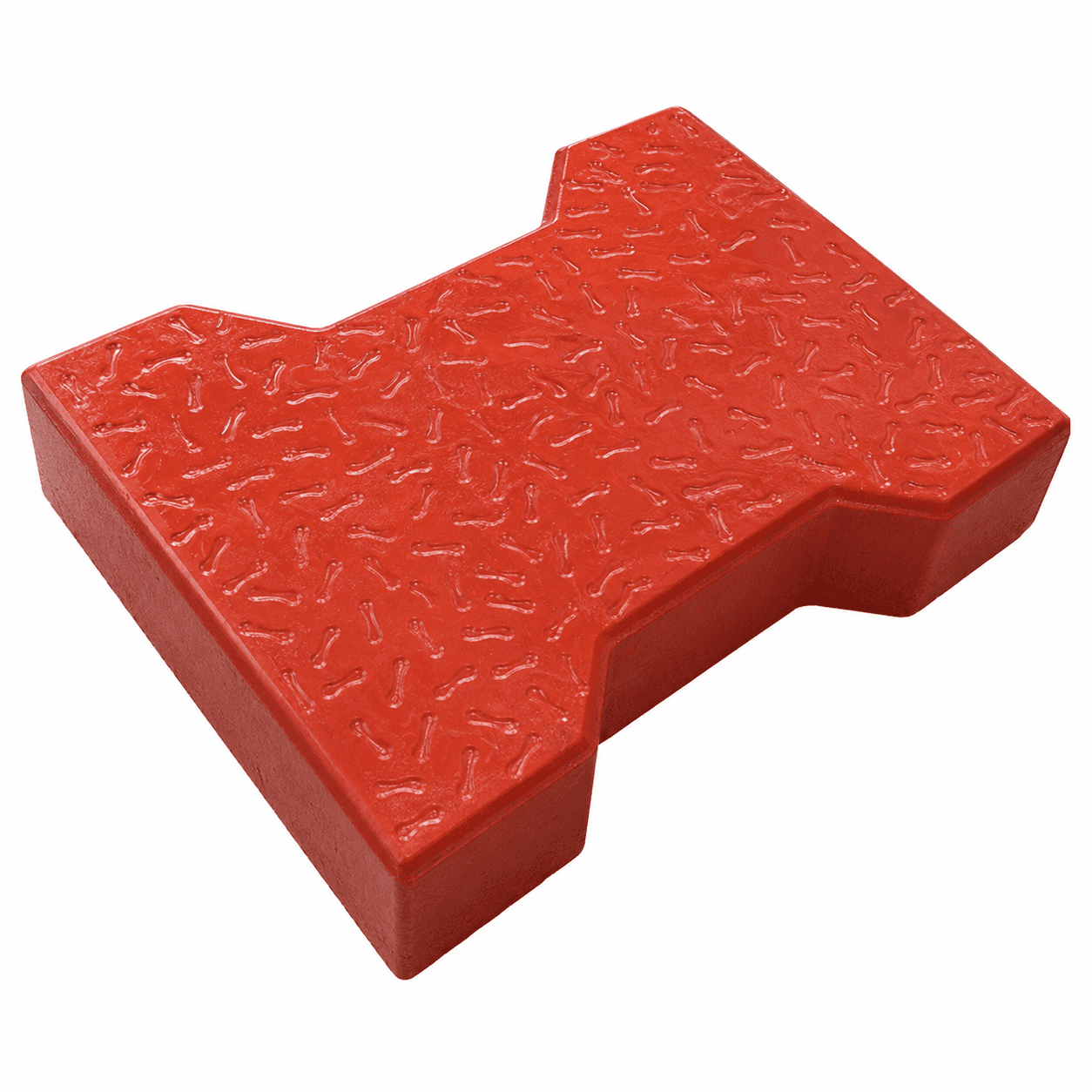

I Shape Paver Block 200 × 163 × 60 mm |  | 25 - 30 s | 6 | 864 blocks/hour |
Grass Paving Block 440 × 315 × 80 mm |  | 25 - 30 s | 1 | 144 blocks/hour |
Carb Stone 500 × 380 × 150 mm |  | 25 - 30 s | 2 | 288 blocks/hour |

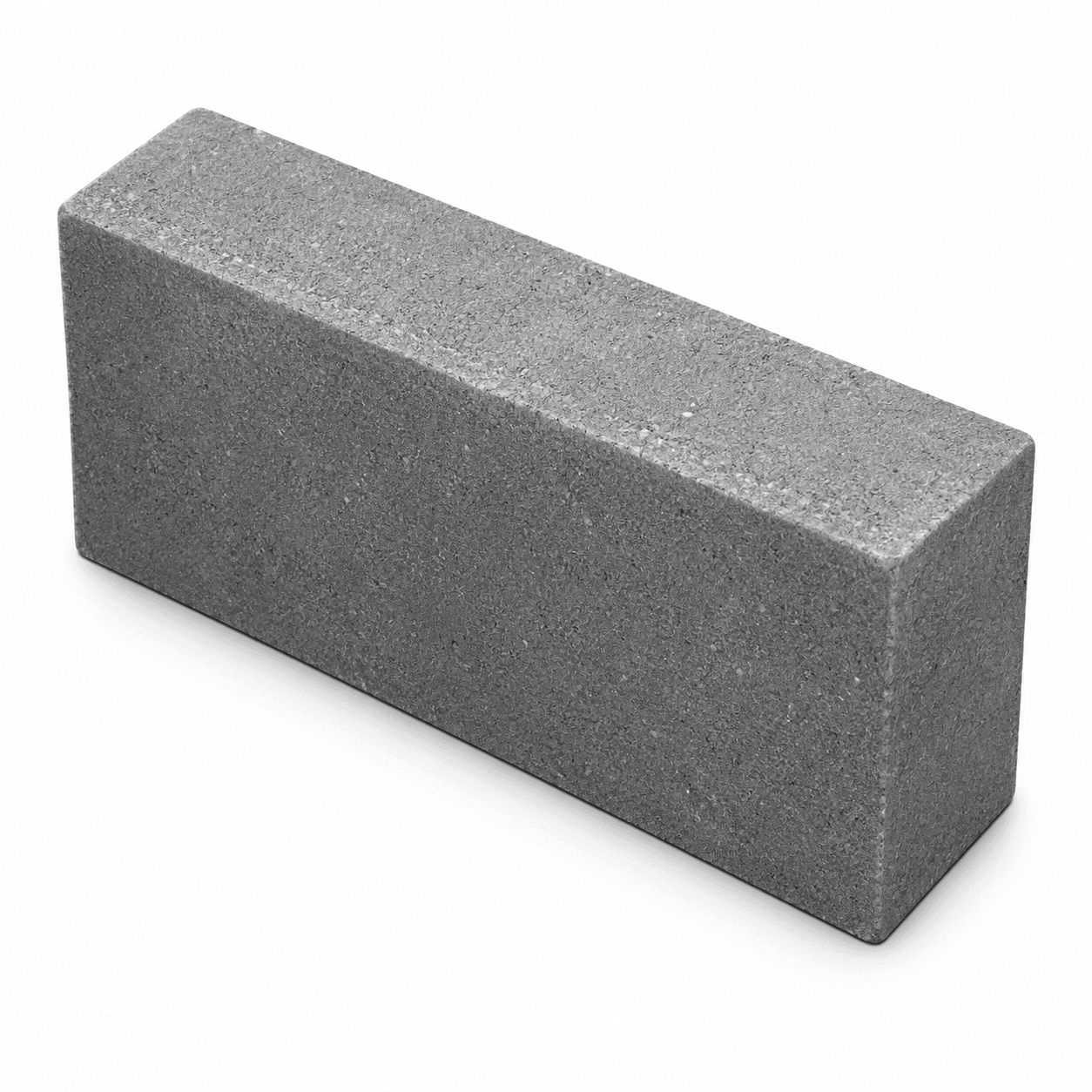

Edging Blcok 500 × 250 × 150 mm |  | 25 - 30 s | 2 | 288 blocks/hour |
Drainage Block 200 × 200 × 400 mm |  | 25 - 30 s | 2 | 288 blocks/hour |
Road Tiles 250 × 250 × 60 mm |  | 25 - 30 s | 4 | 576 Tiles/hour |
