QT2-90 Semi Automatic Hydraulic Block Machine | NewTech Engineering Ltd.
Semi-automatic hydraulic concrete block production line designed for high-quality hollow and solid block manufacturing with reliable performance and low operating costs.
Maximum Output
480 Blocks/Hour
Machine Weight
1 T
Machine Power
19.5 KW
Product overview
The QT2-90 Semi-Automatic Hydraulic Block Production Line is designed for entrepreneurs and growing concrete block manufacturers seeking reliable, high-quality block production with affordable investment. Equipped with a hydraulic vibration system, durable steel structure, and pallet-based production process, it delivers consistent block quality with low maintenance and efficient operation. Suitable for producing hollow and solid concrete blocks, the QT2-90 offers an ideal solution for small to medium-scale manufacturing businesses looking to expand their production capacity.
Key specifications
- Machine Type
- Semi Automatic Hydraulic Block Production Line
- Automation
- Semi-Automatic
- Machine Size
- 1000 × 1500 × 2000 mm
- Vibration Force
- 20–25 KN
- Vibration Frequency
- 2800–4200 RPM
- Host Machine Power
- 12 KW
- Total Project Power
- 19.5 KW
- Machine Weight
- 1 T
- Pallet Size
- 610 × 610 × 25 mm
- Required Shed Area
- 1000 sq.ft
- Recommended Land Area
- 20–25 Decima
| Block Name & Size | Block Picture | Making Period | Produced Per Mould | Production Capacity / Per Hour |
|---|---|---|---|---|

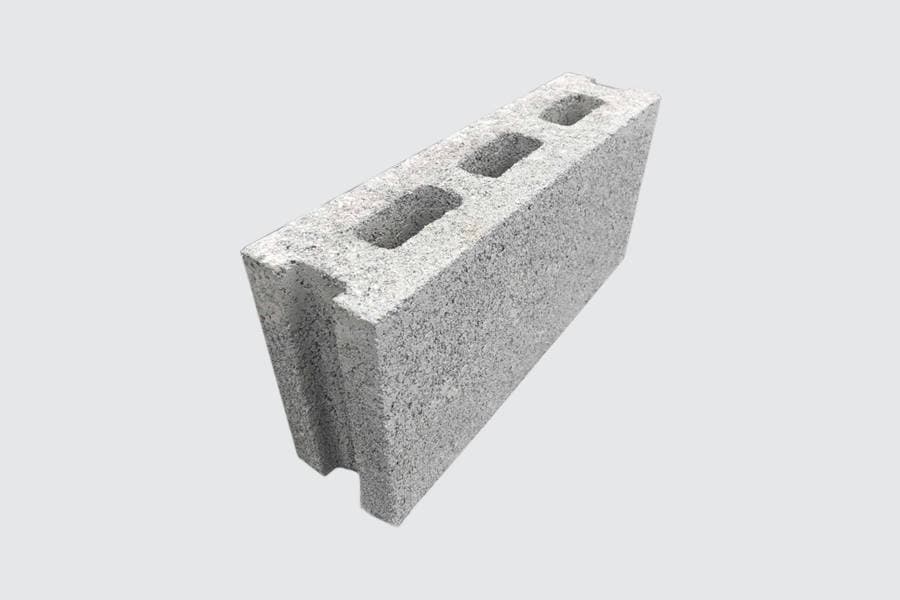

Hollow 390 × 190 × 190 mm |  | 90 s | 2 | 80 Blocks |
Hollow 390 × 190 × 115 mm |  | 90 s | 4 | 160 Blocks |
Hollow 390 × 190 × 100 mm |  | 90 s | 5 | 200 Blocks |

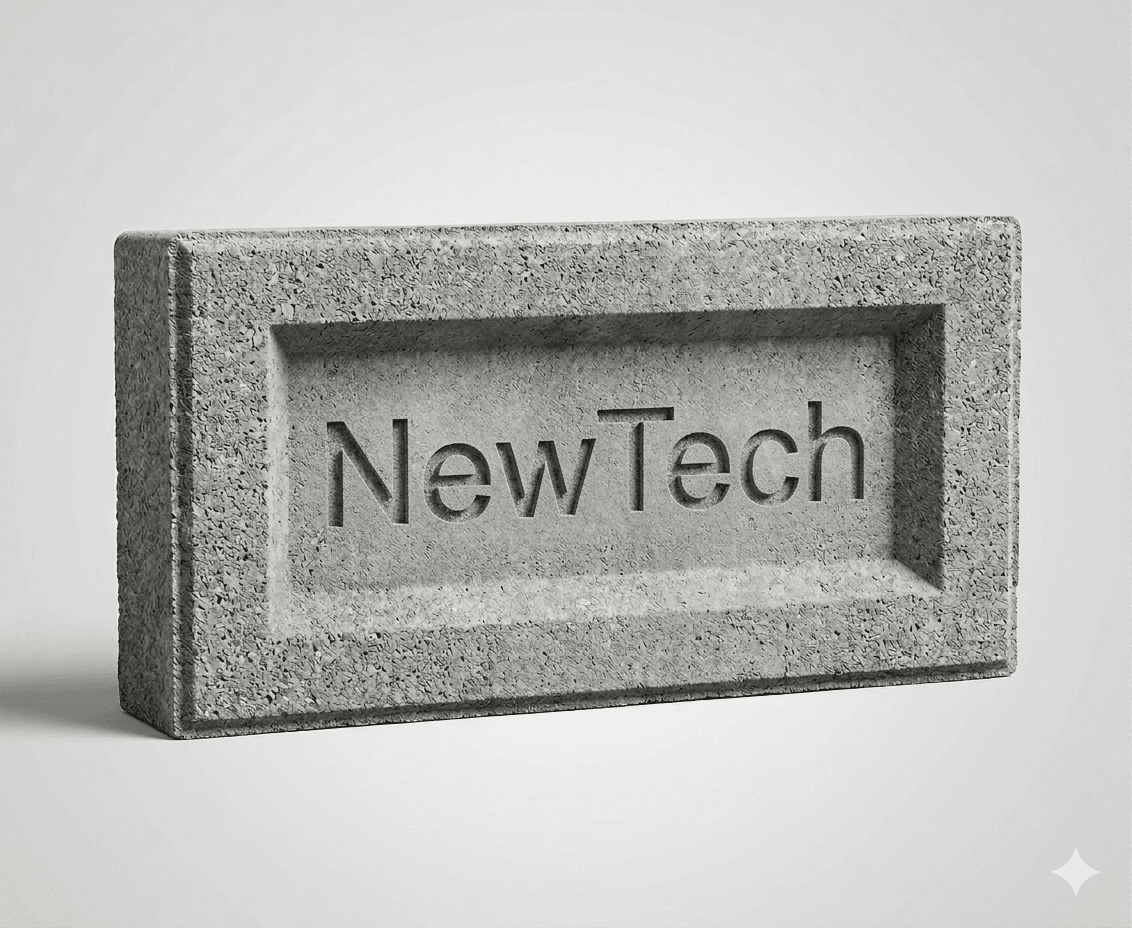

Solid with Logo 240 × 115 × 70 mm |  | 90 s | 8 | 320 Blocks |

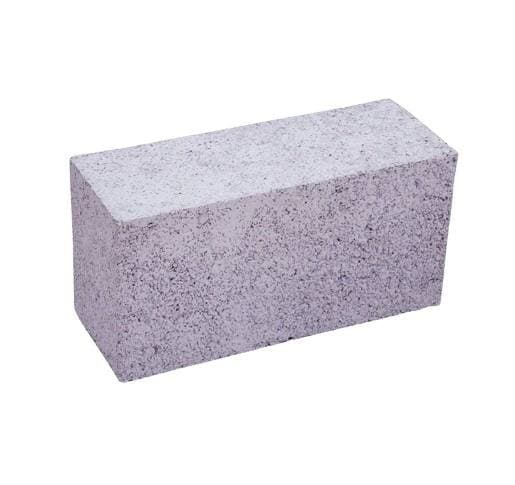

Solid 240 × 115 × 70 mm |  | 90 s | 12 | 480 Blocks |
