Crusher Machines

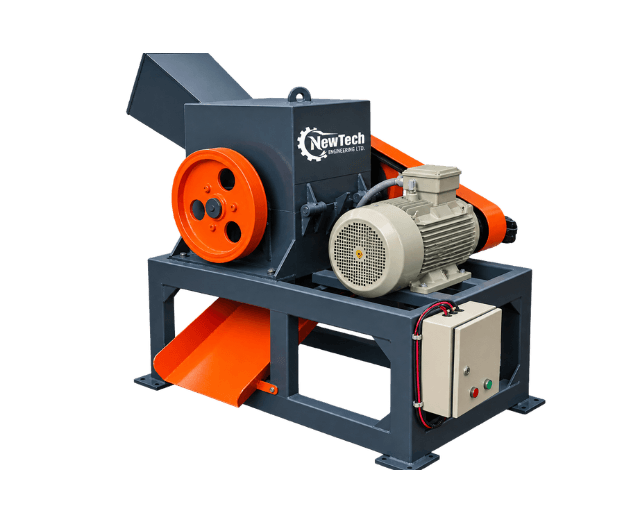

NewTech B-Series Crusher Machine
The NewTech B-Series Crusher Machine is a heavy-duty motor-driven crushing solution designed for reducing suitable construction materials into smaller and reusable particles. Available in B-40 and B-55 models, the series offers 10 HP and 20 HP motor options for different material-processing requirements.
Available Models
B-40 and B-55
Motor Power Range
10–20 HP
Motor Speed
2800 RPM
Main Shaft Diameter
50–62 mm
Power Supply
440V
See it in action
Experience the engineering excellence of the NewTech B-Series Crusher Machine. High-performance output meets precision control in this detailed demonstration.
Click to load video
Product overview
The NewTech B-Series Crusher Machine is designed for efficient size reduction of brick, concrete waste and other suitable construction materials. Its motor-driven hammer crushing system breaks larger materials into smaller particles that can be reused or processed for construction and concrete block production. The series includes the B-40 and B-55 models. The B-40 is powered by a 10 HP motor and is suitable for moderate crushing requirements, while the heavy-duty B-55 features a 20 HP motor, a larger main shaft and stronger structural components for more demanding operations. Both models operate at 2800 RPM with a 440V power supply and feature 16-inch starting motor and balancing pulleys. Hardened hammer cutters, a strong steel frame and a large feeding hopper support reliable crushing performance and convenient material feeding. The machine is suitable for block factories, construction material processing facilities and recycling operations requiring a dependable material size-reduction solution.
Key specifications
- Product Type
- Hammer Crusher Machine
- Operation Type
- Motor-Driven
- Available Models
- B-40 and B-55
- Motor Power
- 10–20 HP
- Power Supply
- 440V
- Motor Speed
- 2800 RPM
- Main Shaft Diameter
- 50–62 mm
- Block Bearing Size
- 40–55 mm
- Starting Motor Main Pulley
- 16-inch diameter
- Balancing Pulley
- 16-inch diameter
- Crusher Frame
- Heavy-Duty Steel Structure
- Feeding System
- Top Feed Hopper
- Cutter Type
- Hard-Tempered Hammer Cutter
| Format | Cycle | Per hour |
|---|---|---|
| B-55 crushing | Continuous | Material dependent |
| B-40 crushing | Continuous | Material dependent |
