QT6-15 Automatic Block Production Line
The QT6-15 is a heavy-duty automatic block production line designed for manufacturing hollow blocks, hollow bricks, solid bricks, logo bricks, pavers, road tiles, kerbstones, edging blocks, drainage blocks and grass paving blocks. Its powerful hydraulic pressure and vibration system ensure reliable operation and consistent product quality.
Maximum Output
Up to 1,728 bricks/hour
Moulding Cycle
25–30 seconds
Vibration Force
60–70 kN
Rated Pressure
25 MPa
Total Project Power
85 kW
Product overview
The QT6-15 Automatic Block Production Line is a heavy-duty concrete block manufacturing solution suitable for medium to large-scale commercial production. It combines 25 MPa hydraulic pressure with a powerful 60–70 kN vibration system to produce strong, uniform and accurately shaped concrete products. The interchangeable mould system allows manufacturers to produce hollow blocks, hollow bricks, solid logo bricks, solid bricks, uni paver blocks, I-shape pavers, grass paving blocks, kerbstones, edging blocks, drainage blocks and road tiles using the same production line. According to the selected mould and product size, the machine can produce up to 1,728 solid bricks per hour. The QT6-15 features a 30 kW host machine motor, approximately 85 kW total project power, a heavy-duty 6.3-tonne structure and a large 1,230 × 920 mm pallet system. It is suitable for commercial concrete product factories requiring flexible mould options, stable production, high vibration force and reliable industrial performance.
Key specifications
- Model
- QT6-15
- Machine Type
- Automatic Block Production Line
- Host Machine Size
- 3200 × 2300 × 2750 mm
- Vibration Force
- 60–70 kN
- Rated Pressure
- 25 MPa
- Vibration Frequency
- 2800–4500 times/minute
- Host Machine Power
- 30 kW
- Total Project Power
- 85 kW
- Host Machine Weight
- 6.3 tonnes
- Pallet Size
- 1230 × 920 × 28 mm
- Required Machine Shed Area
- Approximately 4,000 sq ft
- Recommended Land Area
- Approximately 100 decimals
- Moulding Cycle
- 25–30 seconds
| Block Name & Size | Block Picture | Making Period | Produced Per Mould | Production Capacity / Per Hour |
|---|---|---|---|---|

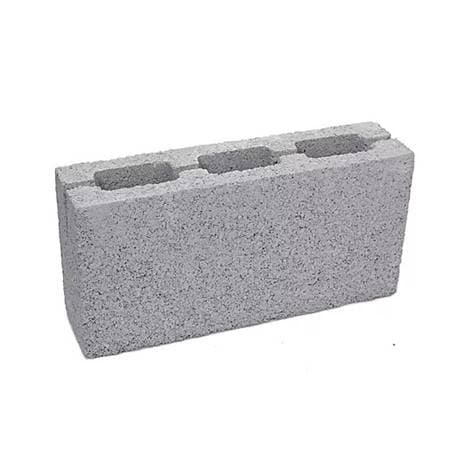

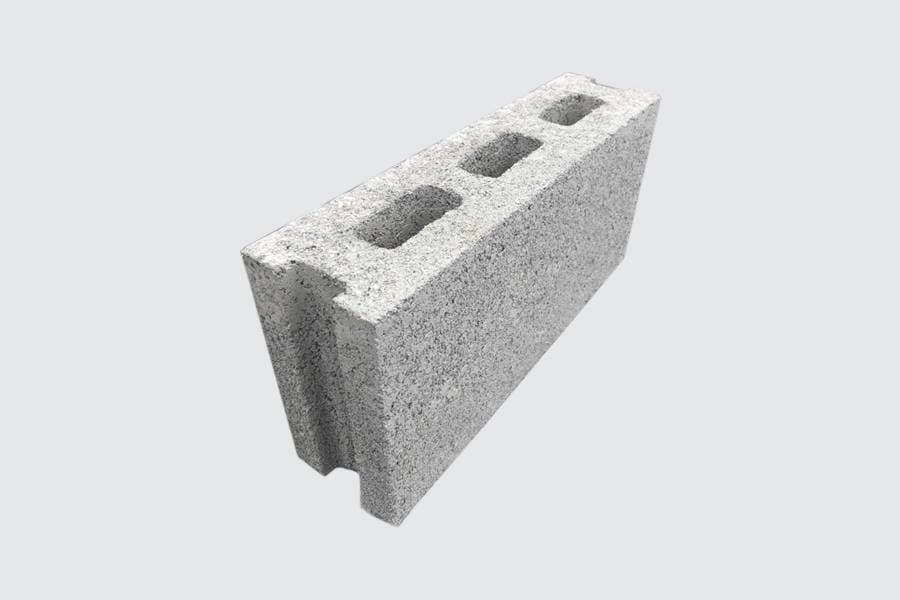

Hollow Block 390 × 190 × 190 mm |  | 15–20 s | 6 | 1,440 blocks/hour |
Hollow Block 390 × 190 × 115 mm |  | 15–20 s | 10 | 2,400 blocks/hour |
Hollow Block 390 × 190 × 100 mm |  | 15–20 s | 10 | 2,400 blocks/hour |
Hollow Block 390 × 190 × 90 mm |  | 15–20 s | 12 | 2,880 blocks/hour |

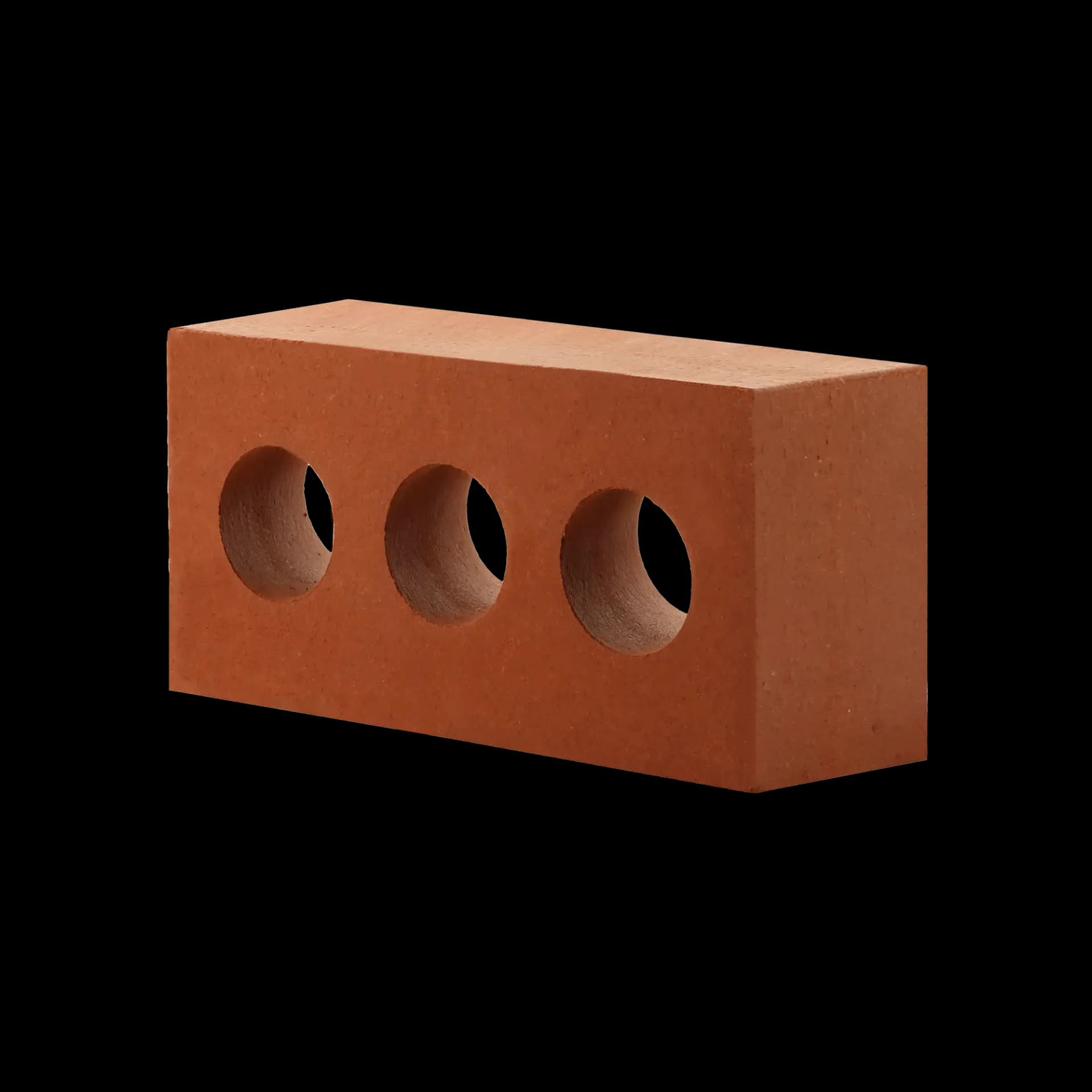

Hollow Bricks |  | 15–20 s | 15 | 3,600 bricks/hour |

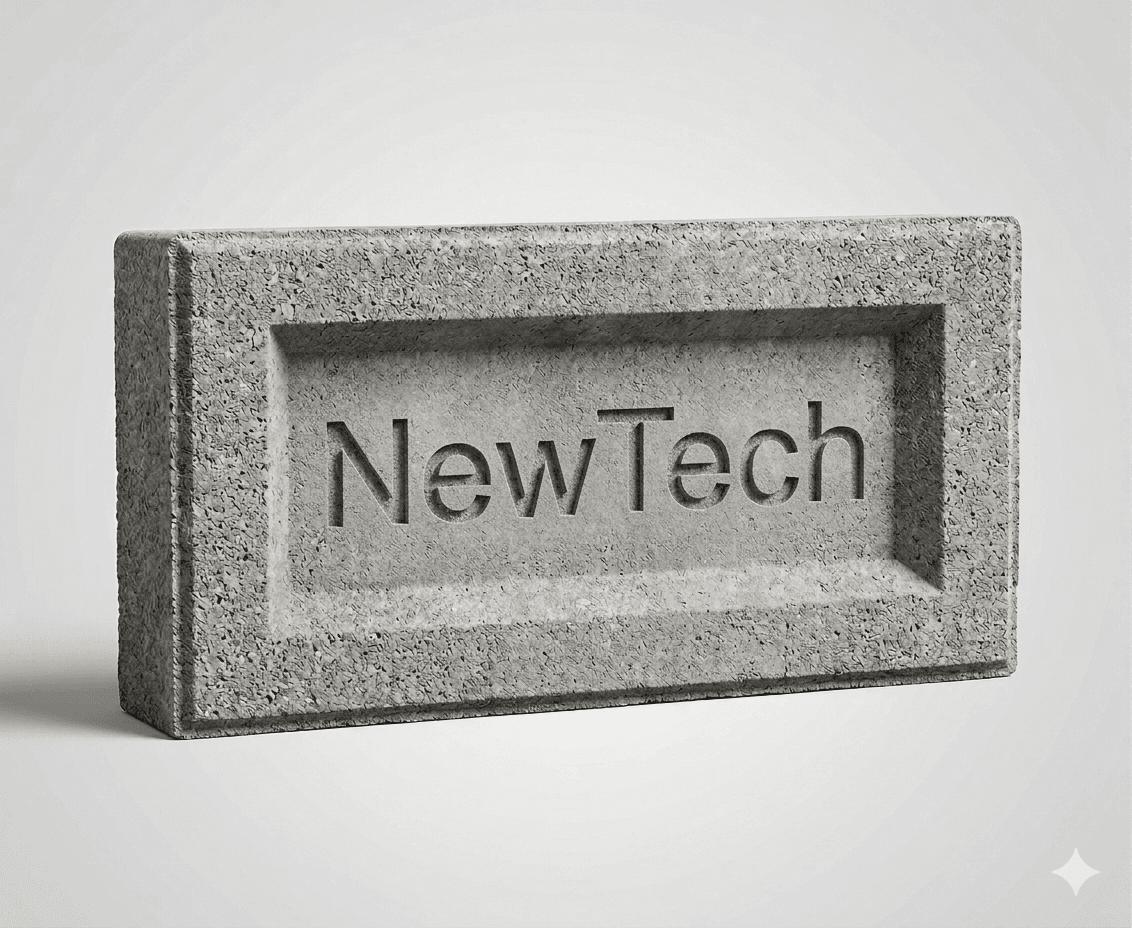

Solid Logo Brick 240 × 115 × 70 mm |  | 15–20 s | 15 | 3,600 bricks/hour |

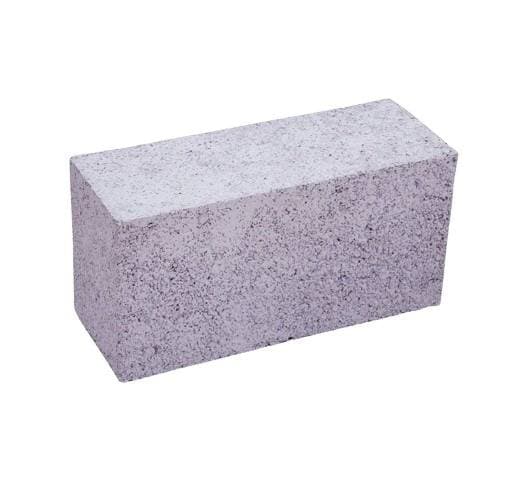

Solid Bricks 240 × 115 × 70 mm |  | 15–20 s | 26 | 6,240 bricks/hour |

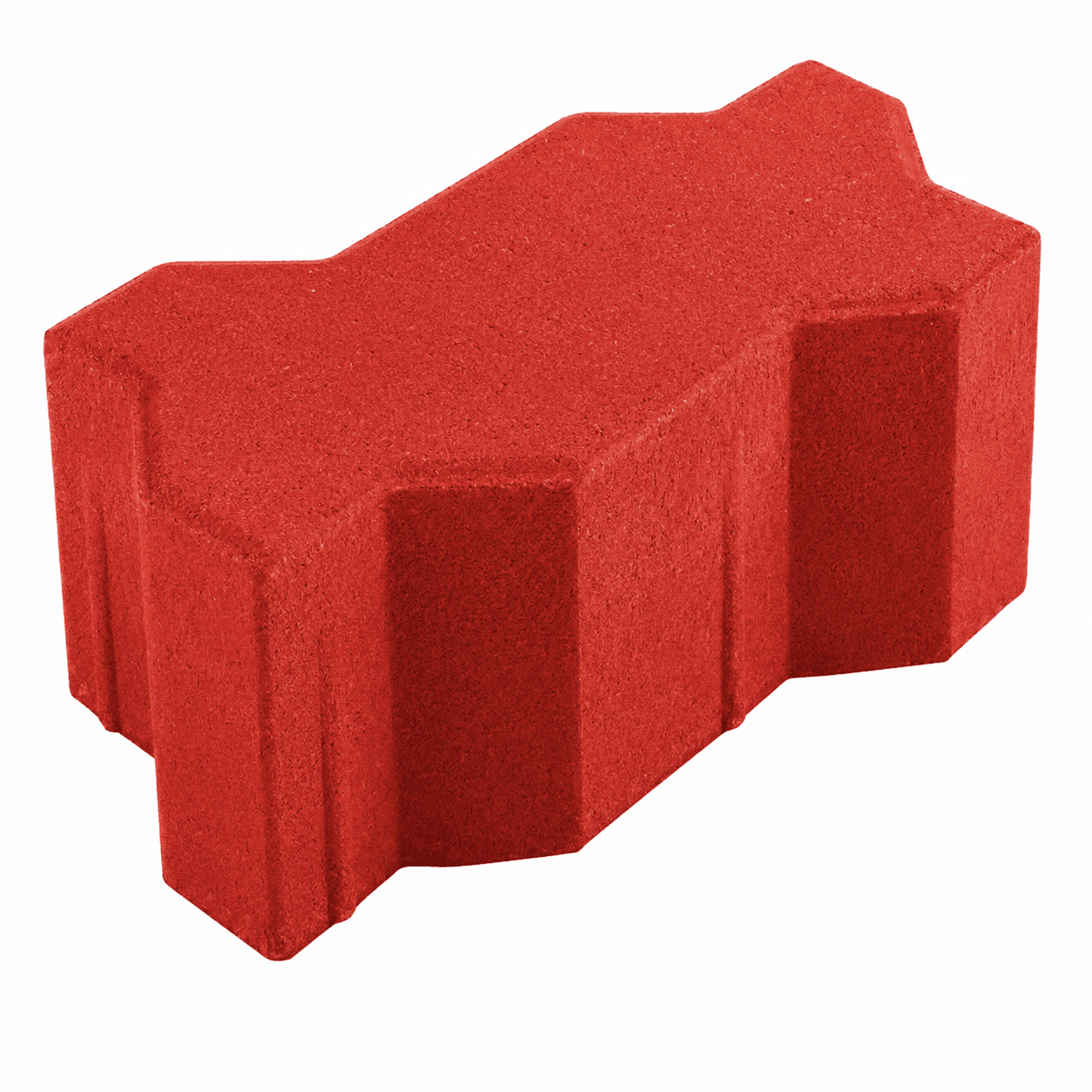

Uni Paver Block 220 × 110 × 80 mm |  | 15–20 s | 15 | 3,600 blocks/hour |

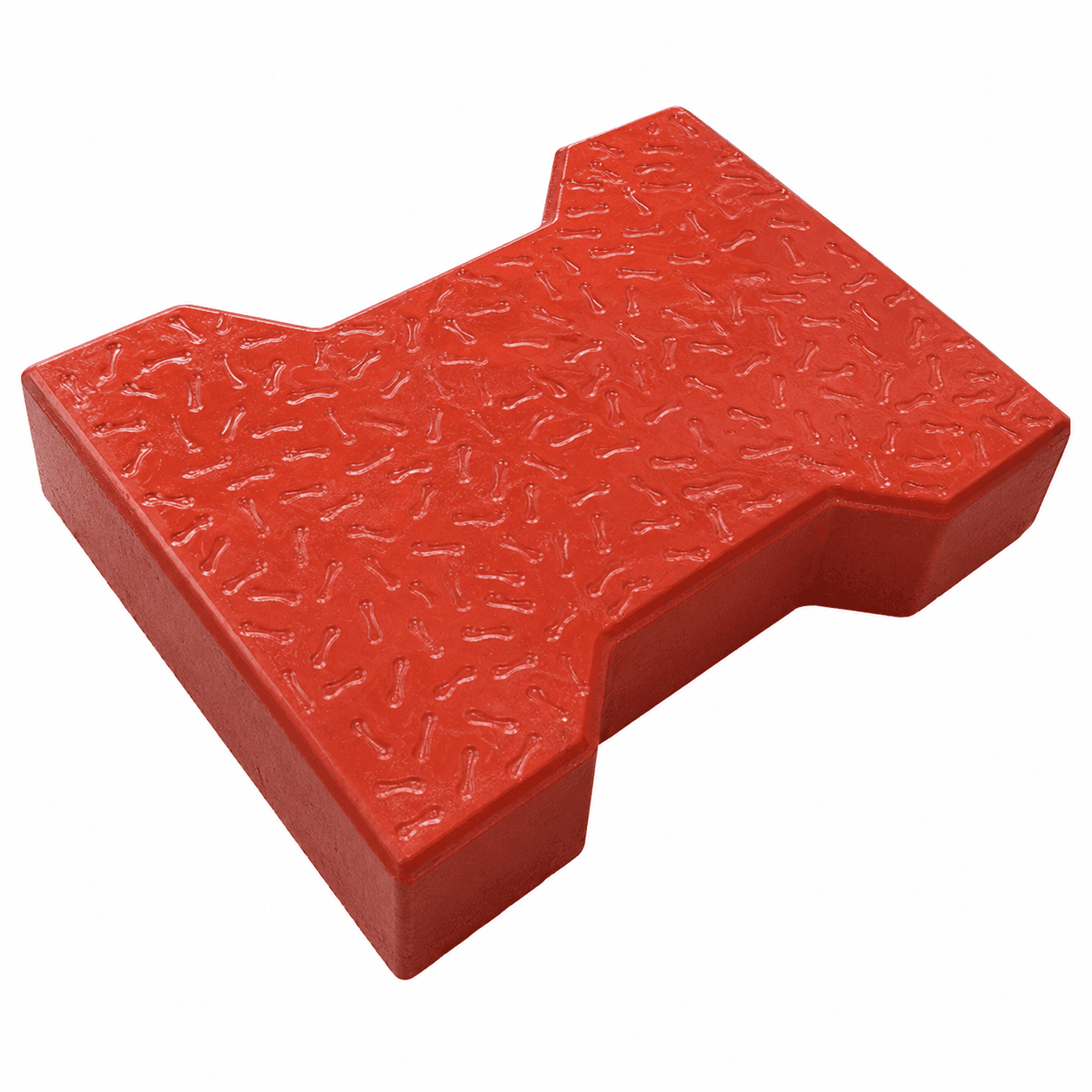

I Shape Paver Block 200 × 160 × 80 mm |  | 15–20 s | 12 | 2,880 blocks/hour |
Grass Paving Block 444 × 315 × 80 mm |  | 15–20 s | 3 | 720 blocks/hour |
Carb Stone 500 × 380 × 150 mm |  | 15–20 s | 2 | 480 pieces/hour |

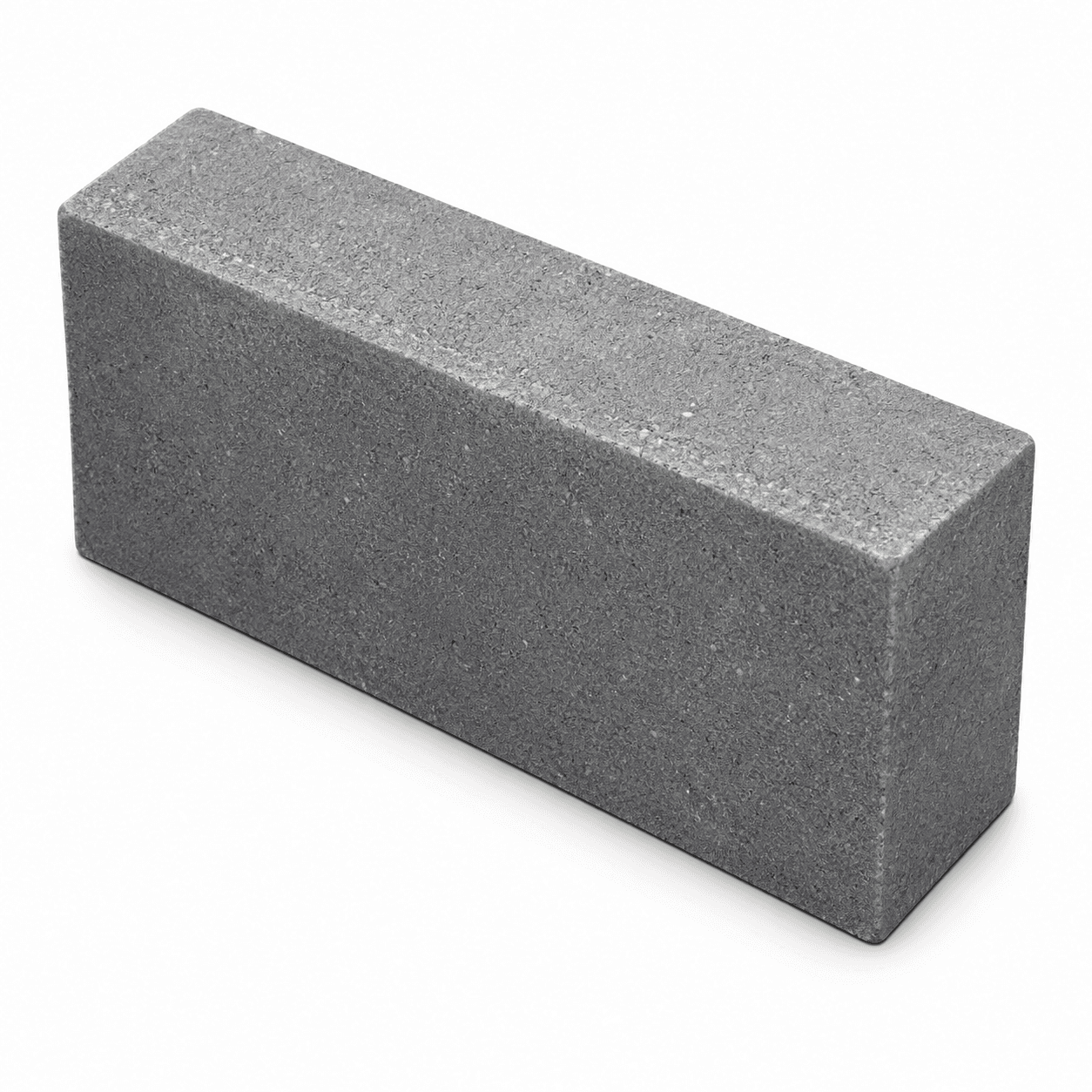

Edging Blcok 500 × 250 × 150 mm |  | 15–20 s | 3 | 720 pieces/hour |
Drainage Block 200 × 200 × 400 mm |  | 15–20 s | 6 | 1,440 pieces/hour |
Road Tiles 250 × 250 × 60 mm |  | 15–20 s | 6 | 1,440 tiles/hour |
