Mixer Machines

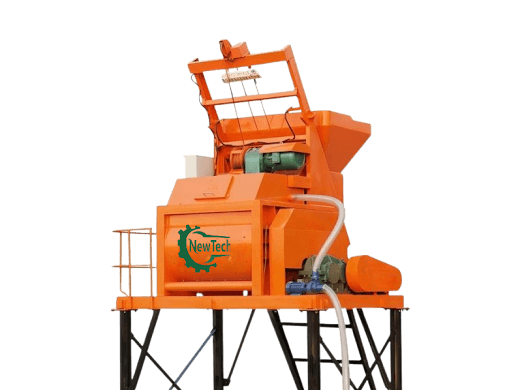

JS Series Twin Shaft Concrete Mixer Series
The Twin Shaft Concrete Mixer Series is designed for efficient, uniform and high-output concrete mixing for block plants, batching plants and construction projects. The series includes JS500, JS750, JS1000, JQ500 and JQ350 models with capacities ranging from 350 to 1000 litres and productivity up to 50 m³ per hour.
Available Models
JS500, JS750, JS1000,
Capacity Range
350–1000 L
Productivity Range
4–50 m³/hour
Rotating Speed Range
25.5–35 rpm
Power Range
7.5–61.25 kW
Product overview
The Twin Shaft Concrete Mixer Series offers reliable and efficient mixing performance for concrete block production, construction material processing and batching plant operations. With strong mixing shafts, durable blades and stable power transmission, these mixers ensure homogeneous concrete mixing and consistent material quality. The series includes JS500, JS750 and JS1000 high-capacity models for medium to large production operations, as well as JQ500 and JQ350 compact models for smaller mixing requirements. Depending on the model, the mixers provide productivity from 4 to 50 cubic metres per hour and support different aggregate sizes. These mixers are suitable for concrete block factories, ready-mix operations and general construction projects where stable mixing performance, strong structure and efficient material blending are required.
Key specifications
- Product Type
- Twin Shaft Concrete Mixer
- Model Series
- JS
- Capacity Range
- 350–1000 L
- Productivity Range
- 4–50 m³/hour
- Maximum Aggregate Size
- 60/40 mm to 80/60 mm
- Rotating Speed
- 25.5–35 rpm
- Mixing Blade Quantity
- 4 to 2×7
- Total Power Range
- 7.5–61.25 kW
- Working Dimension Range
- 3000 × 2200 × 3200 mm to 8280 × 3150 × 7920 mm
- Machine Weight Range
- 620–9500 kg
| Format | Cycle | Per hour |
|---|---|---|
| JS500 | 500 L | 25 m³/hour |
| JS750 | 750 L | 35 m³/hour |
| JS1000 | 1000 L | 50 m³/hour |
