QT3-120 Mobile Block Machine | NewTech Engineering Ltd.
Compact self-propelled mobile block machine that produces concrete blocks directly on the ground without pallets. Ideal for on-site block production with low operating costs and high efficiency.
Type
Mobile / Egg-laying
Power
10 KW
Automation
Semi
Product overview
The QT3-120 Mobile Block Machine is a self-propelled egg-laying concrete block making machine designed for producing high-quality hollow and solid concrete blocks directly on the ground without using pallets. Its mobile design makes it ideal for remote construction sites, disaster relief projects, and small to medium-scale block manufacturing businesses. The machine is easy to operate, energy-efficient, and capable of delivering consistent production with low maintenance requirements. It offers an economical and reliable solution for modern concrete block production.
Key specifications
- Machine Type
- Mobile / Egg-Laying Block Machine
- Automation
- Semi-Automatic
- Machine Size
- 1000 × 1500 × 1500 mm
- Vibration Force
- 10–16 KN
- Vibration Frequency
- 2860 RPM
- Host Machine Power
- 5.25 KW
- Total Project Power
- 10 KW
- Machine Weight
- 350 KG
- Pallet Requirement
- No Pallet Required/Egglying
- Required Shed Area
- 1000 sq.ft
- Recommended Land Area
- 20–25 Decimal
| Format | Cycle | Per hour |
|---|---|---|

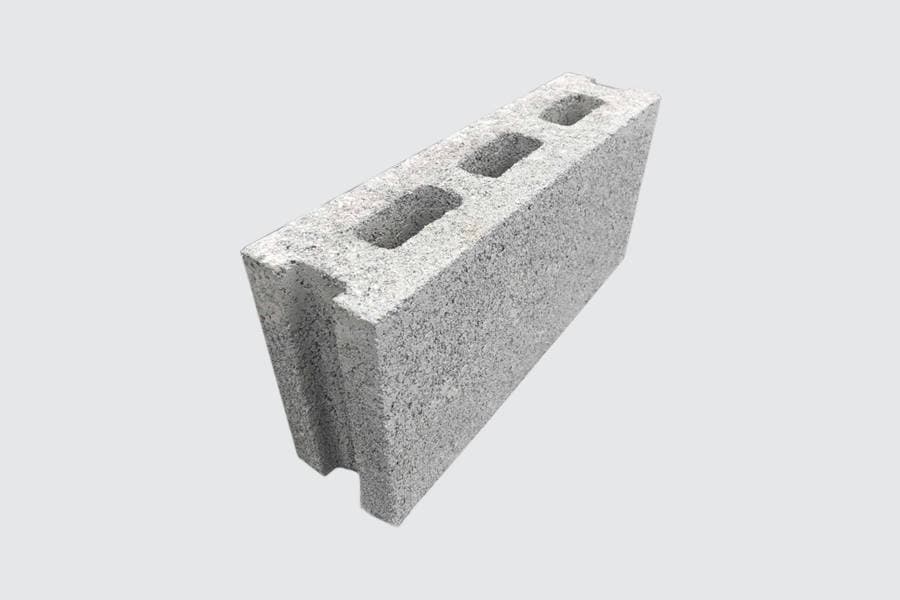

| Hollow 400×200×200 | 120 sec | 60 Blocks/Hour |
| Hollow 400×200×150 | 120 sec | 180 Blocks/Hour |
| Hollow 390×190×100 | 120 sec | 210 Blocks/Hour |

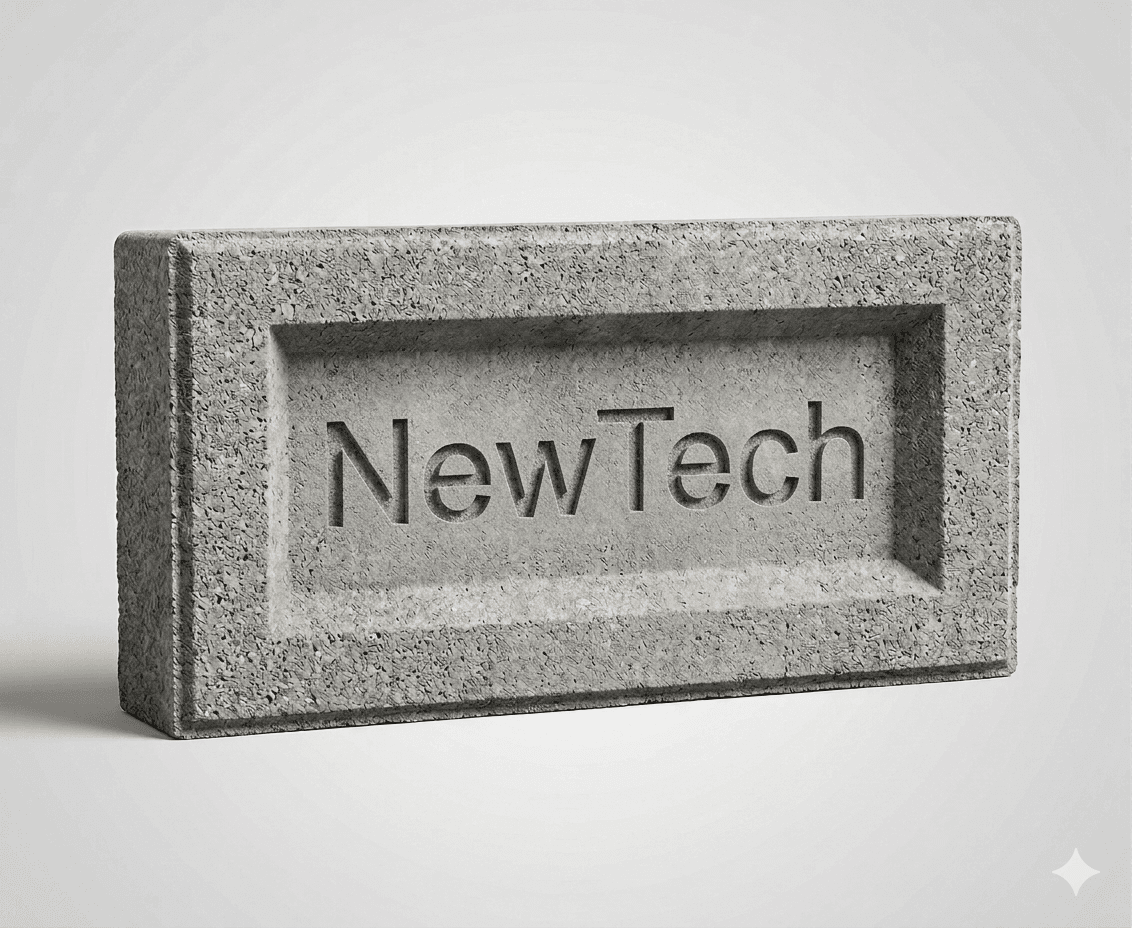

| Solid 240×115×70 | 120 sec | 300 Blocks/Hour |
| Solid 240×115×90 | 120 sec | 480 Blocks/Hour |
