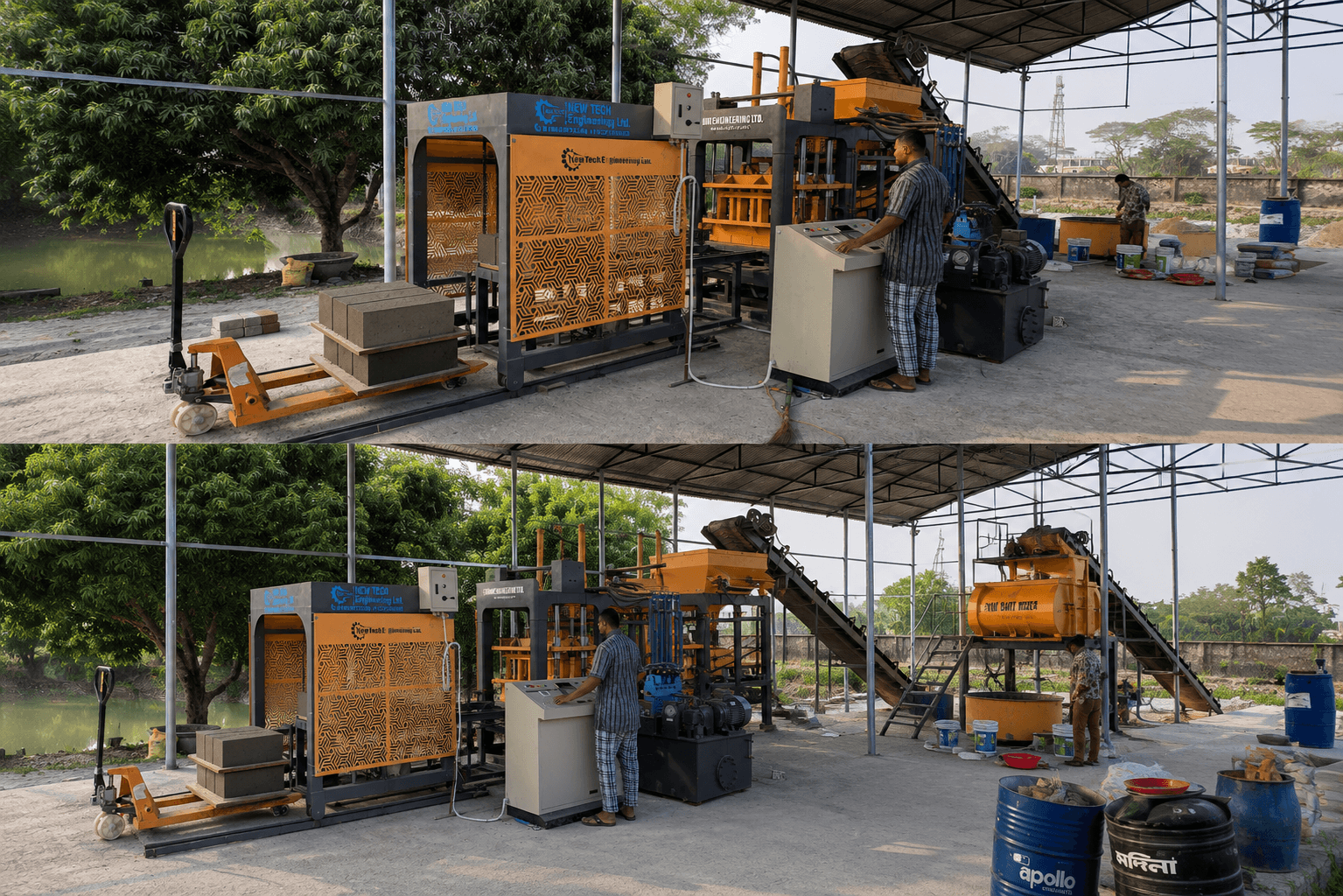

QT4-15C/D Automatic Block Production Line
The QT4-15 is a high-capacity automatic block production line designed for manufacturing hollow blocks, solid bricks, logo blocks, pavers, road tiles, curbstones, drain blocks and other concrete products. Its powerful hydraulic pressure and vibration system ensure consistent quality with a moulding cycle of approximately 15–20 seconds.
Maximum Output
Up to 4,800 blocks/hour
Moulding Cycle
15–20 seconds
Vibration Force
40–50 kN
Rated Pressure
21 MPa
Total Project Power
40 kW
Product overview

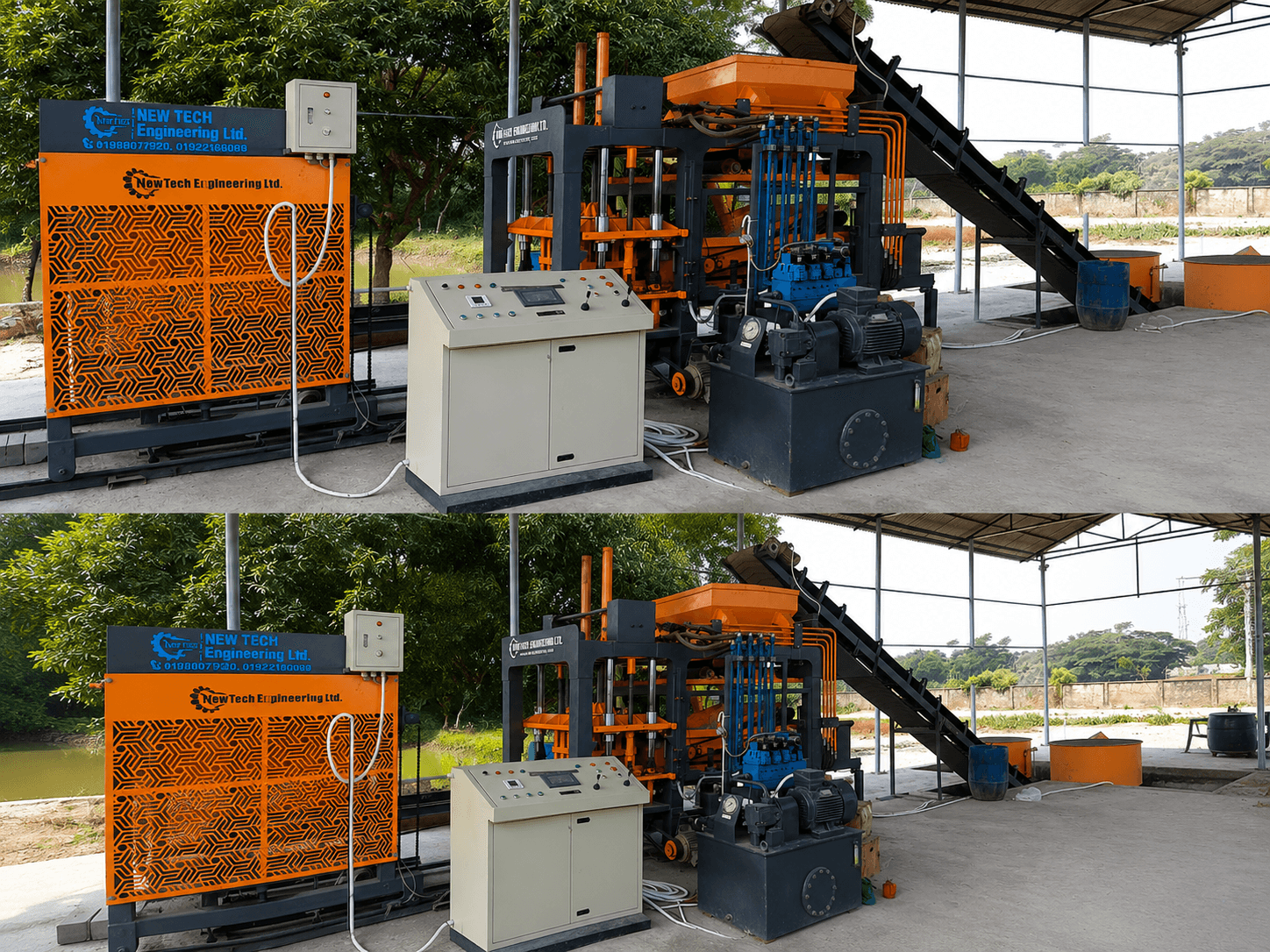

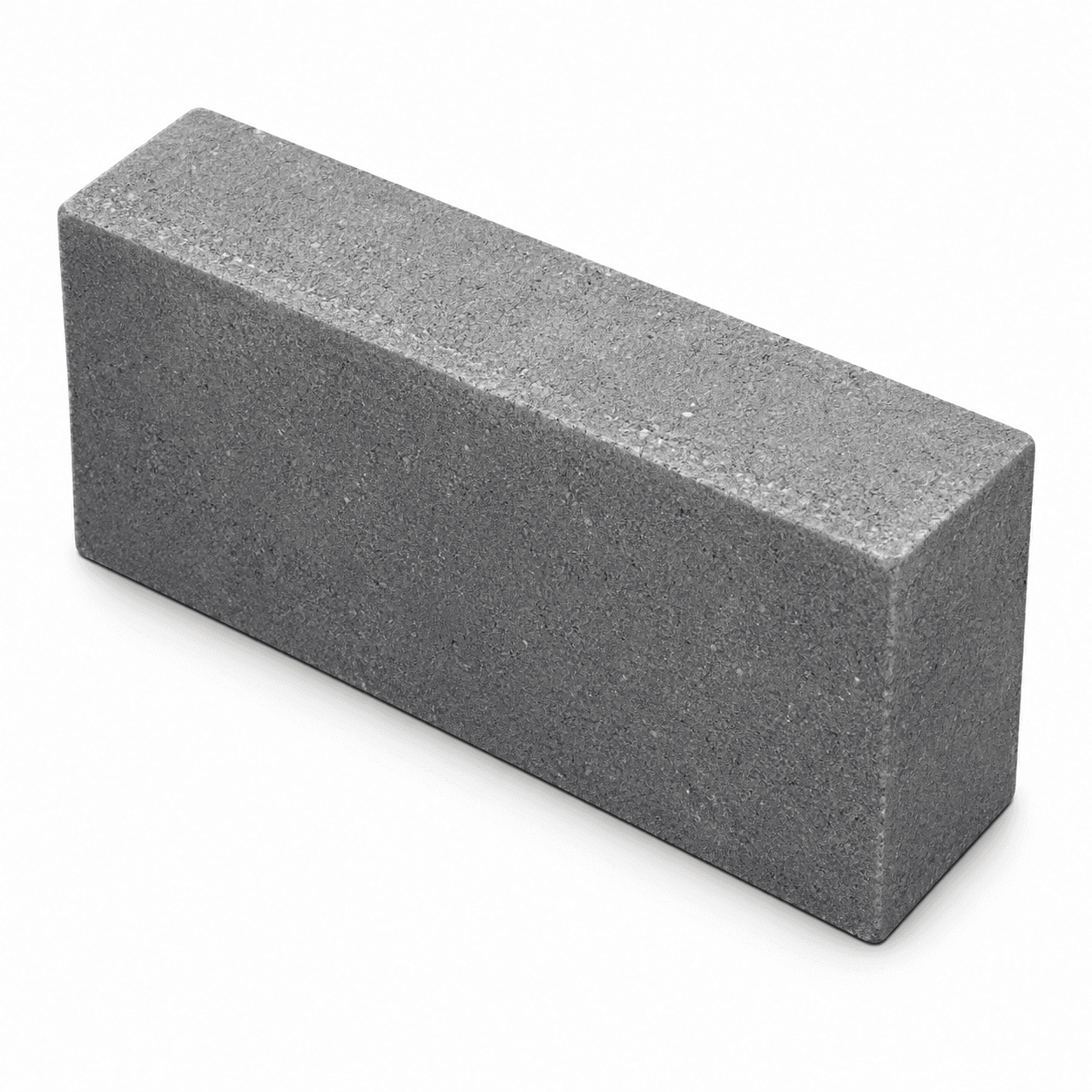

The QT4-15 Automatic Block Production Line is a heavy-duty solution for medium to large-scale concrete block manufacturing plants. It combines 21 MPa rated hydraulic pressure with a powerful 40–50 kN vibration system to produce strong, uniform and accurately shaped concrete products. By changing the mould, the machine can manufacture hollow blocks, solid logo blocks, solid bricks, paver blocks, hollow bricks, I-shape pavers, road tiles, curbstones, edging blocks, drain blocks and grass pavers. With a moulding cycle of approximately 15–20 seconds, the QT4-15 can produce up to 4,800 solid bricks per hour, depending on the mould, product size, raw material quality and operating conditions. The machine features 24 kW host machine power, 40 kW total project power, a heavy-duty 5-tonne structure and an 860 × 810 mm pallet system. It is suitable for commercial block factories requiring high output, flexible production and reliable industrial performance.
Key specifications
- Model
- QT4-15
- Machine Type
- Automatic Block Production Line
- Host Machine Size
- 2700 × 1800 × 2500 mm
- Vibration Force
- 40–50 kN
- Rated Pressure
- 21 MPa
- Vibration Frequency
- 2800–4500 times/minute
- Host Machine Power
- 24 kW
- Total Project Power
- 40 kW
- Host Machine Weight
- 5 tonnes
- Pallet Size
- 860 × 810 × 25 mm
- Required Machine Shed Area
- Approximately 4,000 sq ft
- Recommended Land Area
- Approximately 66 decimals
- Moulding Cycle
- 15–20 seconds
| Block Name & Size | Block Picture | Making Period | Produced Per Mould | Production Capacity / Per Hour |
|---|---|---|---|---|

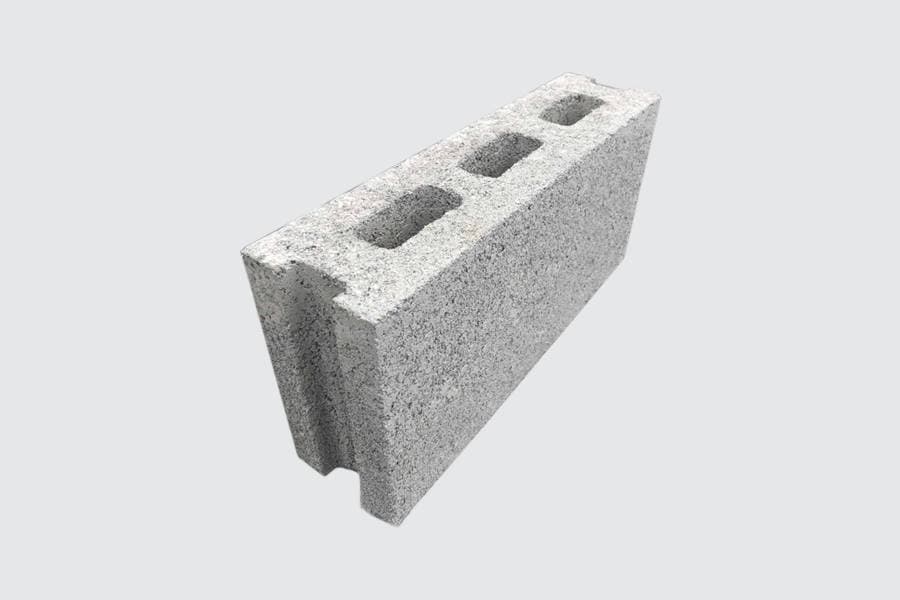

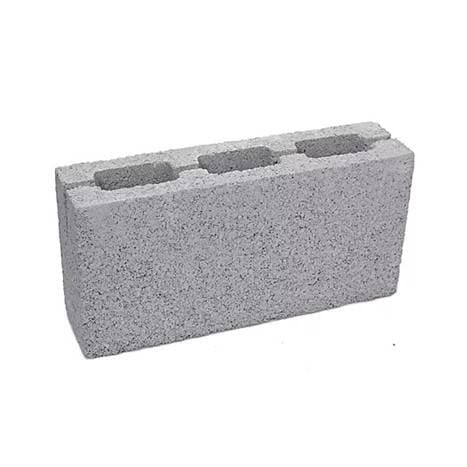

Hollow Block 390x190x190 mm |  | 15 - 20 s | 4 | 960 blocks/hour |
Hollow Block 390 × 190 × 115 mm |  | 15 - 20 s | 6 | 1,440 blocks/hour |
Hollow Block 390 × 190 × 100 mm |  | 15 - 20 s | 7 | 1,680 blocks/hour |
Hollow Block 390 × 190 × 90 mm |  | 15 - 20 s | 8 | 1,920 blocks/hour |

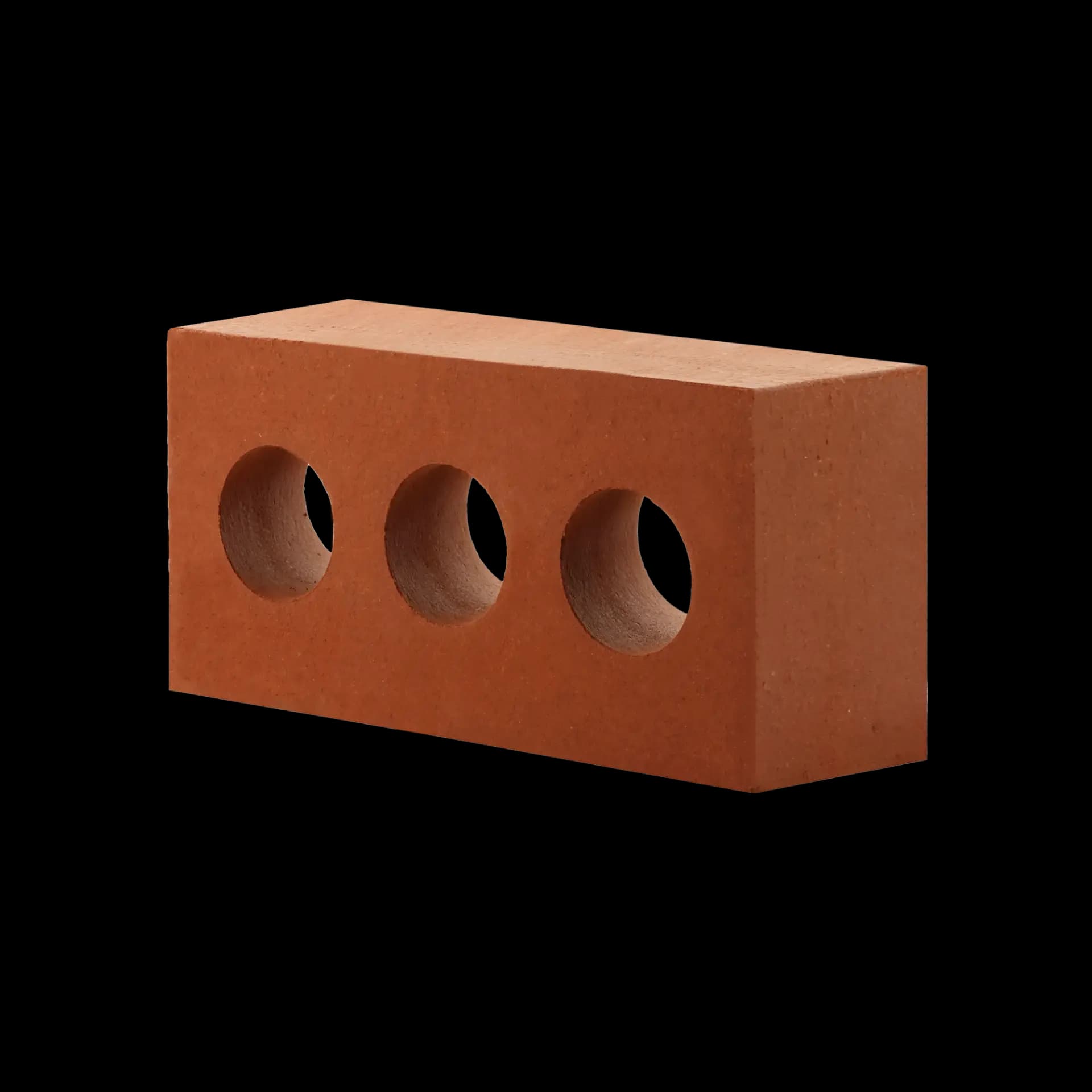

Hollow Brick 240 × 115 × 70 mm |  | 15 - 20 s | 12 | 2,880 bricks/hour |

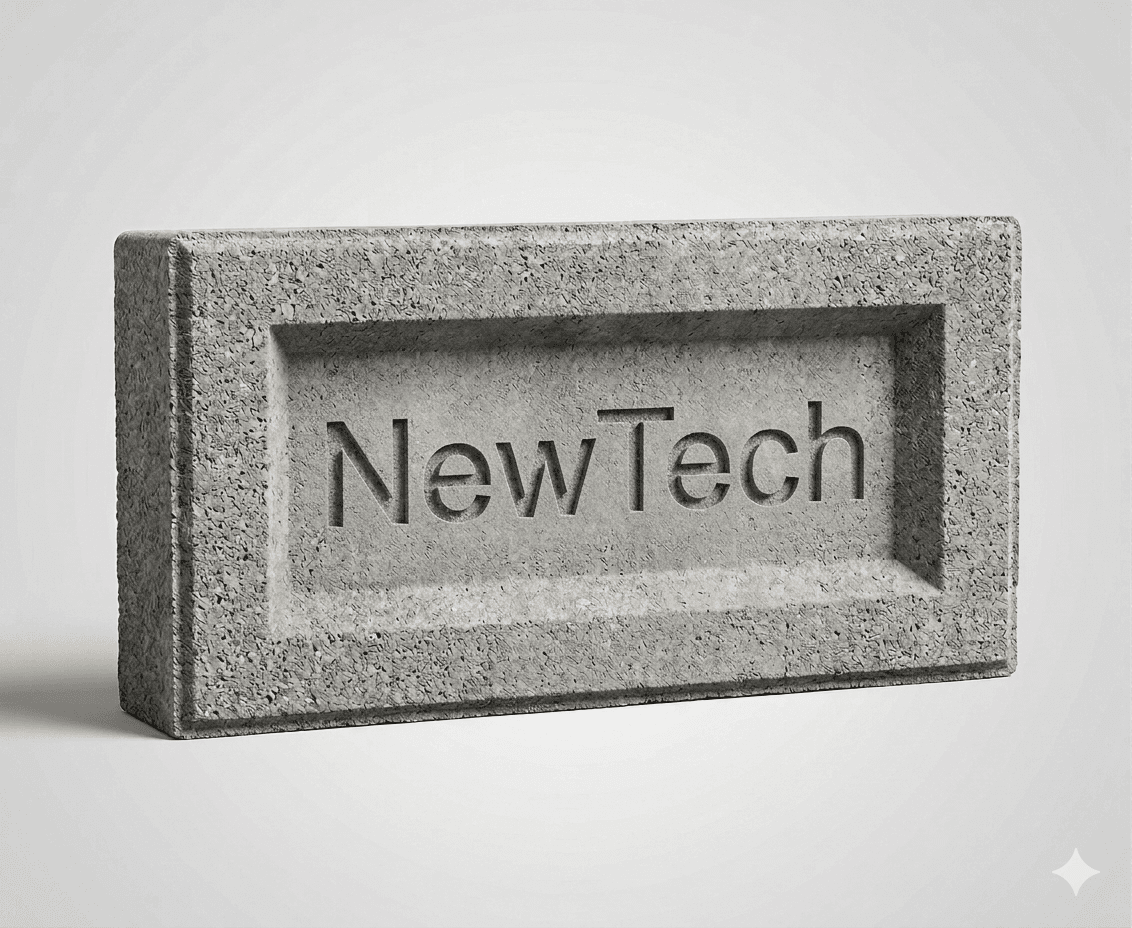

Solid Logo Brick 240 × 115 × 70 mm |  | 15 - 20 s | 12 | 2,880 blocks/hour |

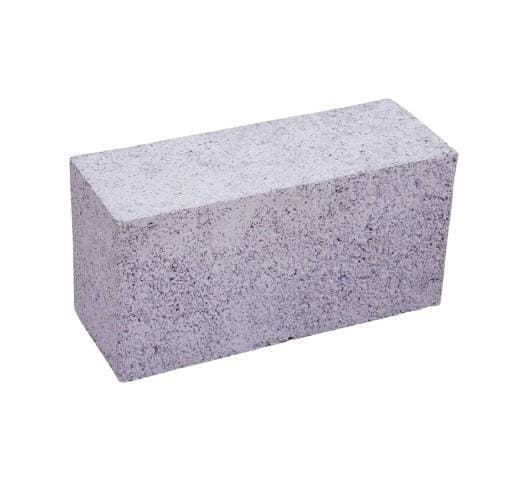

Solid Brick 240 × 115 × 70 mm |  | 15 - 20 s | 20 | 4,800 blocks/hour |

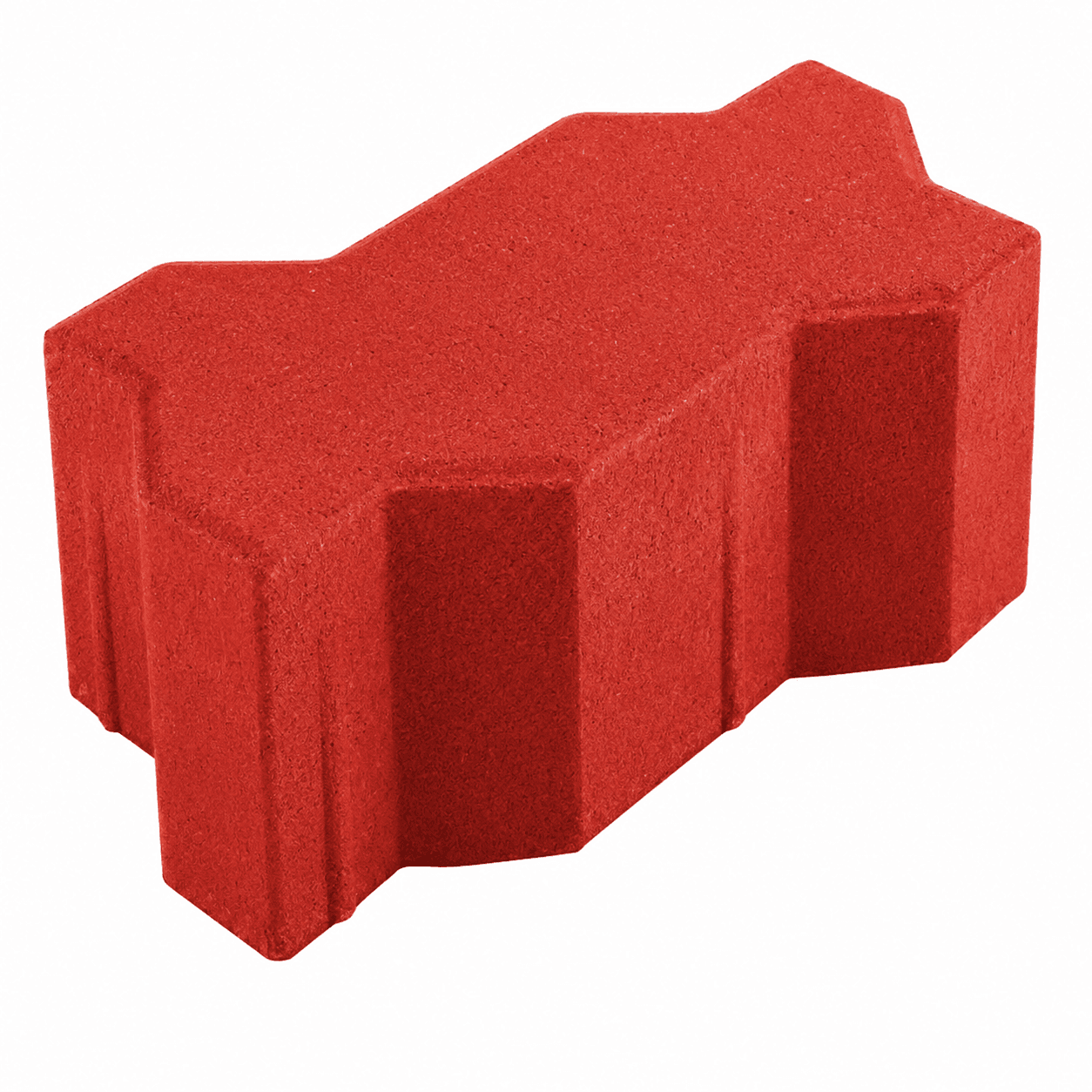

Uni Paver Block 220 × 110 × 80 mm |  | 15 - 20 s | 8 | 2,880 blocks/hour |
— | 15 - 20 s | — | — | |
— | 15 - 20 s | — | — | |
— | 15 - 20 s | — | — |
