QT10-15 Automatic Block Production Line

The QT10-15 is an industrial-grade automatic block production line designed for large-scale manufacturing of hollow blocks, solid bricks, logo bricks, pavers, road tiles, kerbstones, edging blocks, drainage blocks and grass paving blocks. Its powerful hydraulic and vibration systems deliver high production capacity with a moulding cycle of approximately 15–20 seconds.

Maximum Output

Up to 10,320 bricks/hour

8-Hour Output

Up to 82,560 bricks

Moulding Cycle

15–20 seconds

Vibration Force

105–115 kN

Rated Pressure

31 MPa

Product overview

The QT10-15 Automatic Block Production Line is a heavy-duty industrial solution developed for high-volume concrete block manufacturing plants. It combines 31 MPa rated hydraulic pressure with a powerful 105–115 kN vibration system to produce strong, dense and accurately shaped concrete products. Its interchangeable mould system allows manufacturers to produce hollow blocks, hollow bricks, solid logo bricks, solid bricks, paver blocks, I-shape pavers, road tiles, kerbstones, edging blocks, drainage blocks and grass paving blocks using the same production line. With a moulding cycle of approximately 15–20 seconds, the QT10-15 can produce up to 10,320 solid bricks per hour or up to 82,560 bricks during an 8-hour production shift, depending on the selected mould, product dimensions, raw materials and operating conditions. The machine features 45 kW host machine power, 125 kW total project power, a heavy-duty 9-tonne structure and a large 1,200 × 900 mm pallet system. It is suitable for large industrial factories requiring continuous production, high vibration performance and dependable long-term operation.

Automatic block production line

31 MPa hydraulic pressure system

105–115 kN vibration force

High-frequency vibration technology

15–20 second moulding cycle

Interchangeable mould system

Multiple concrete product options

Heavy-duty 9-tonne structure

Large pallet-based production system

Ultra-high hourly production capacity

Uniform block density and dimensions

Reliable continuous industrial operation

Suitable for large-scale concrete product factories

NewTech Engineering Ltd. provides machine installation guidance, operator training, factory setup support, production guidance and after-sales technical assistance. Actual production capacity may vary depending on mould type, product dimensions, raw material quality, concrete mix ratio, operator efficiency and working conditions. Warranty and service terms will be provided with the final quotation and sales agreement.

Key specifications

Model: QT10-15
Machine Type: Automatic Block Production Line
Host Machine Size: 4000 × 2400 × 2950 mm
Vibration Force: 105–115 kN
Rated Pressure: 31 MPa
Vibration Frequency: 2800–5600 times/minute
Host Machine Power: 45 kW
Total Project Power: 125 kW
Host Machine Weight: 9 tonnes
Pallet Size: 1200 × 900 × 30 mm
Required Machine Shed Area: Approximately 6,500 sq ft
Recommended Land Area: Approximately 160 decimals
Moulding Cycle: 15–20 seconds

Block Name & Size	Making Period	Produced Per Mould	Production Capacity / Per Hour

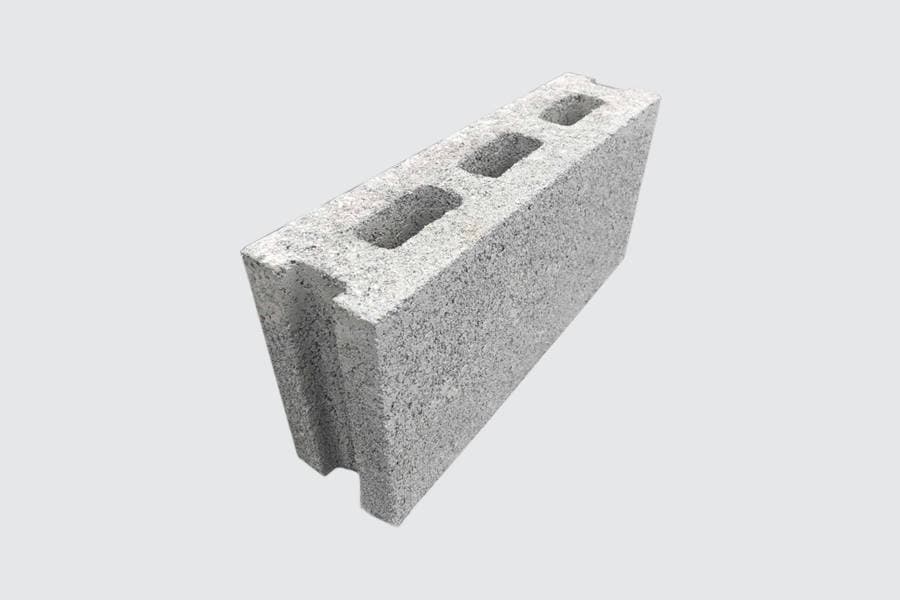

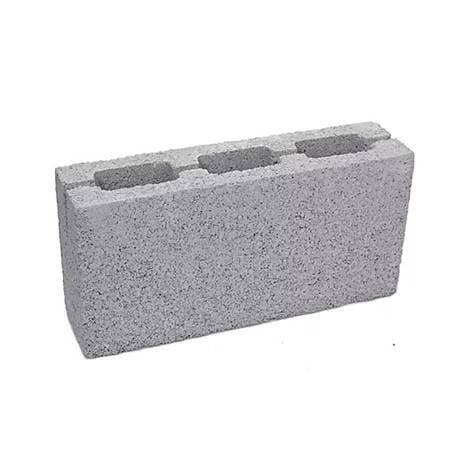

Hollow Block 390 × 190 × 190 mm	15–20 s	10	2,400 blocks/hour
Hollow Block 390 × 190 × 115 mm	15–20 s	16	3,840 blocks/hour
Hollow Block 390 × 190 × 100 mm	15–20 s	18	4,320 blocks/hour
Hollow Block 390 × 190 × 90 mm	15–20 s	20	4,800 blocks/hour

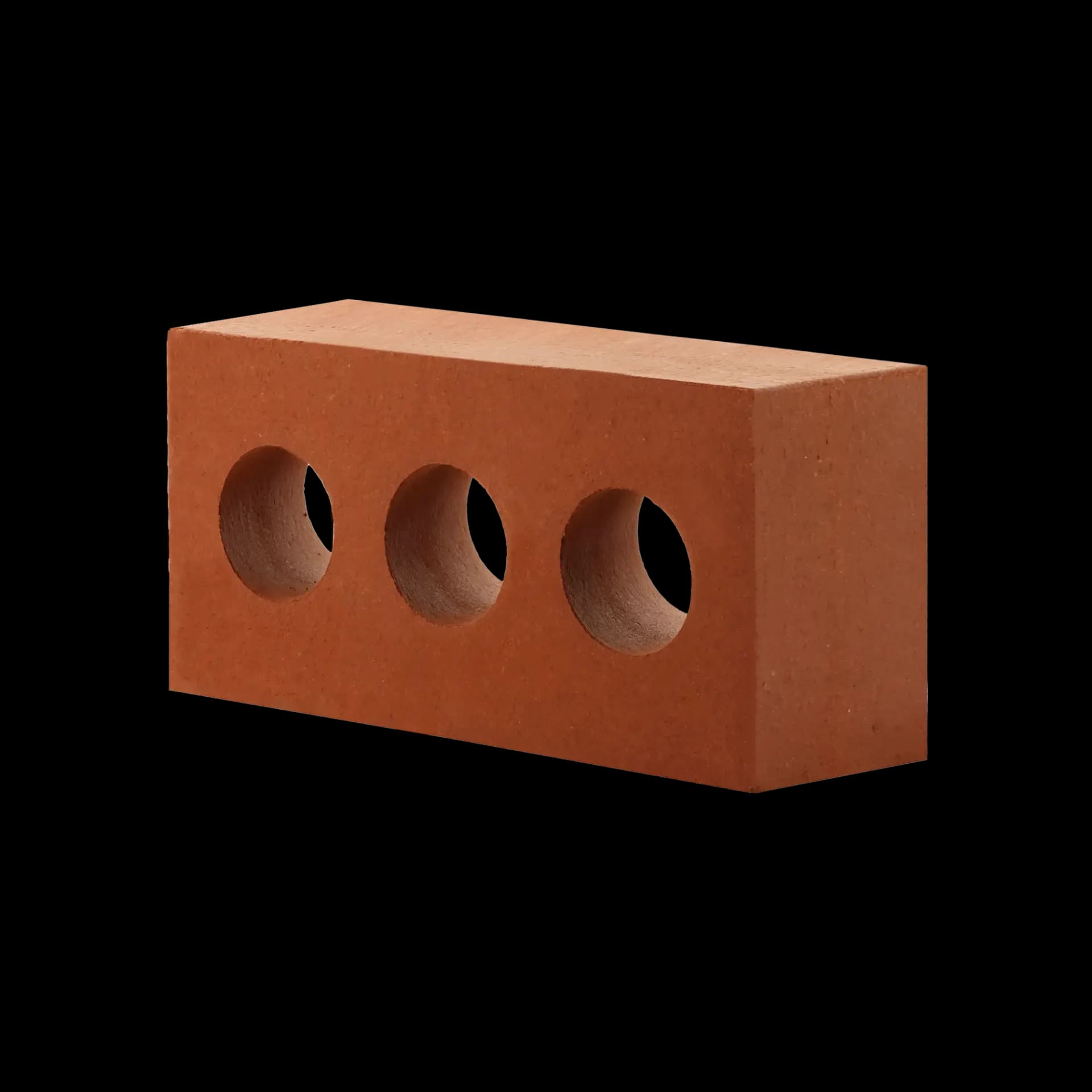

Hollow Bricks 240 × 115 × 70 mm	15–20 s	27	6,480 bricks/hour

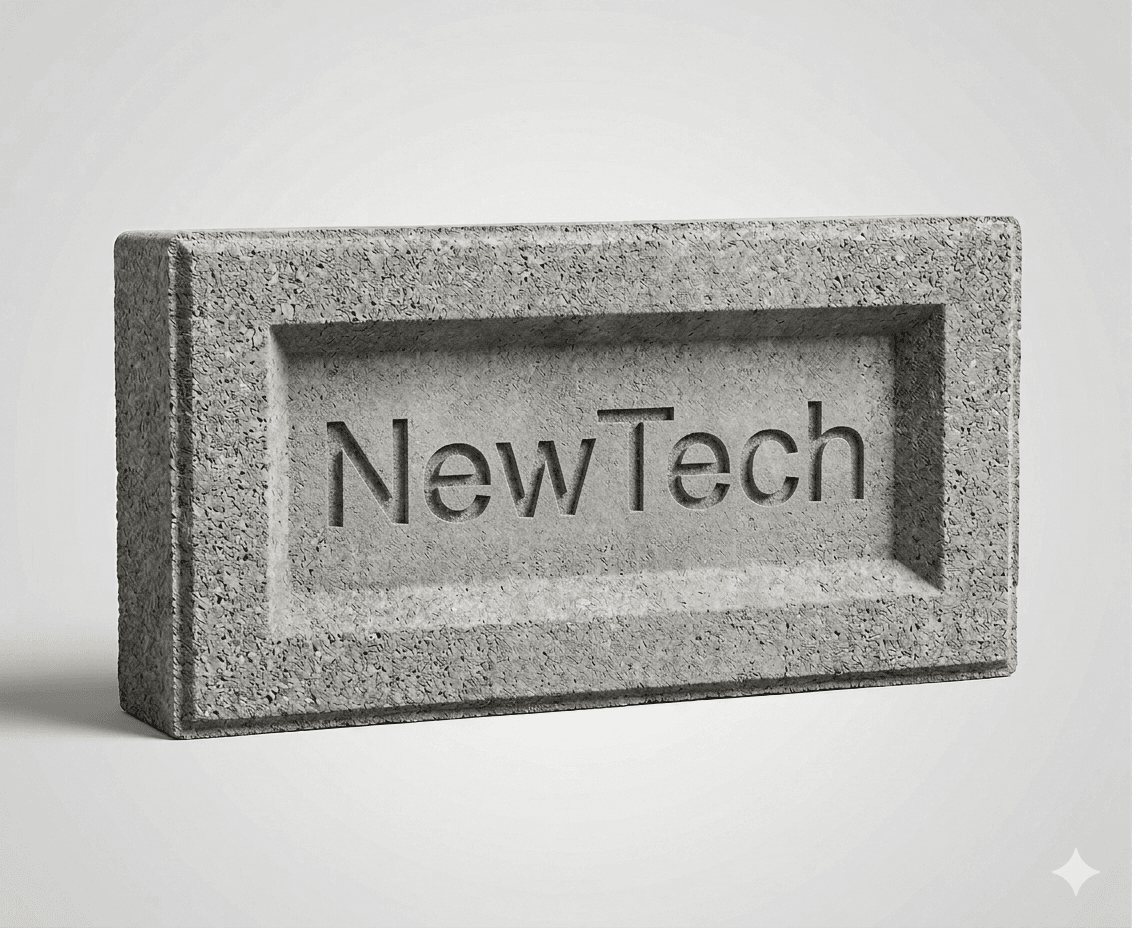

Solid Logo Brick 240 × 115 × 70 mm	15–20 s	27	6,480 bricks/hour

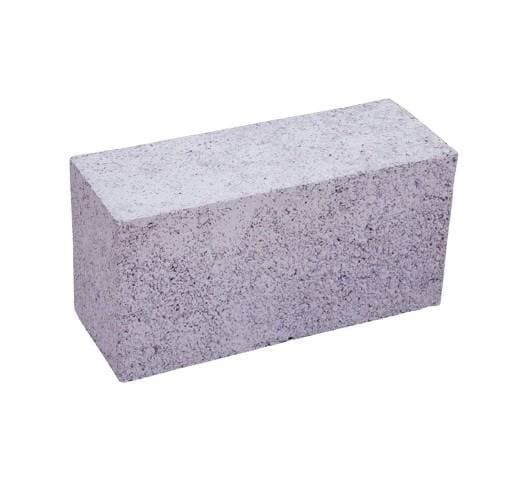

Solid Bricks 240 × 115 × 70 mm	15–20 s	43	10,320 bricks/hour

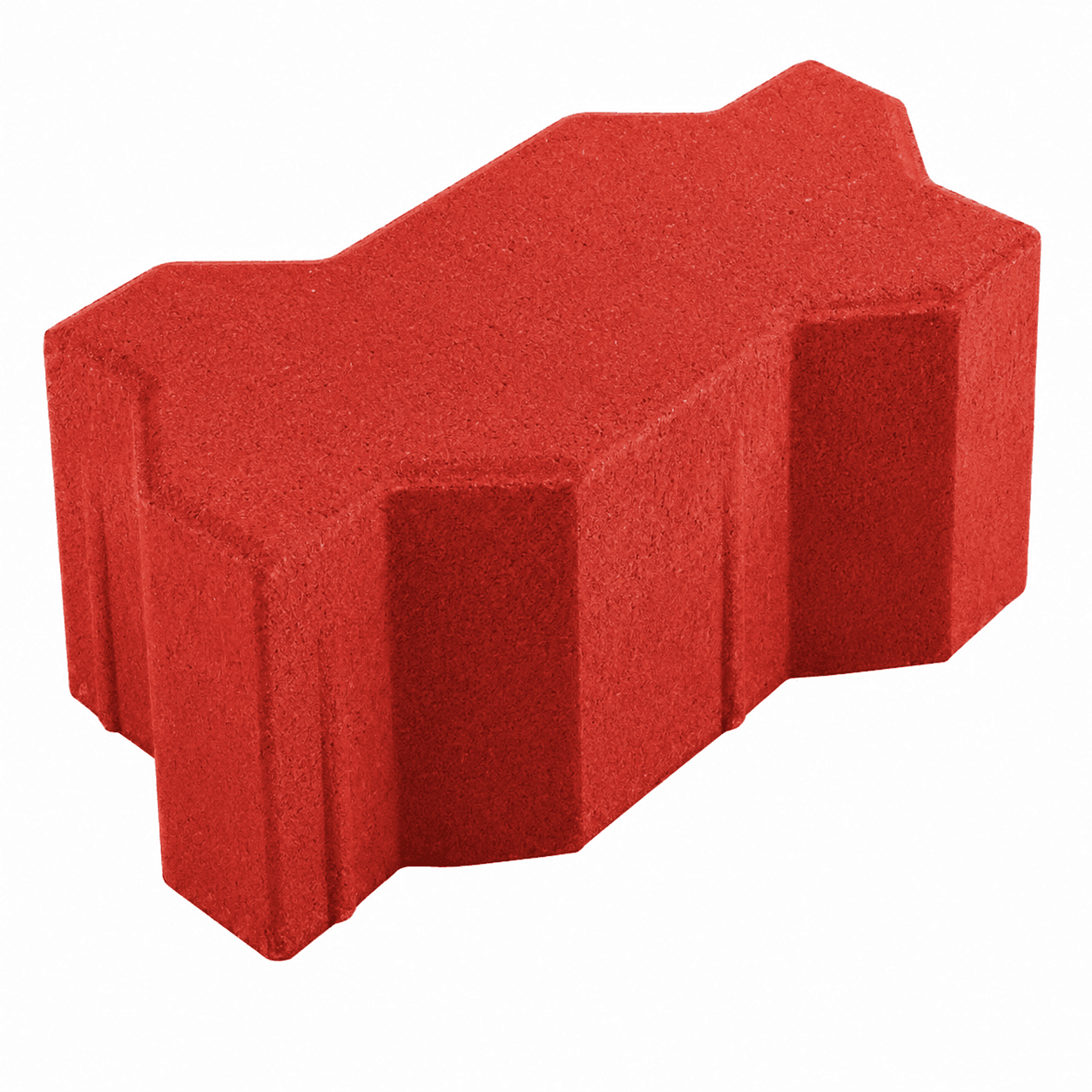

Uni Paver Block 220 × 110 × 80 mm	15–20 s	21	5,040 blocks/hour

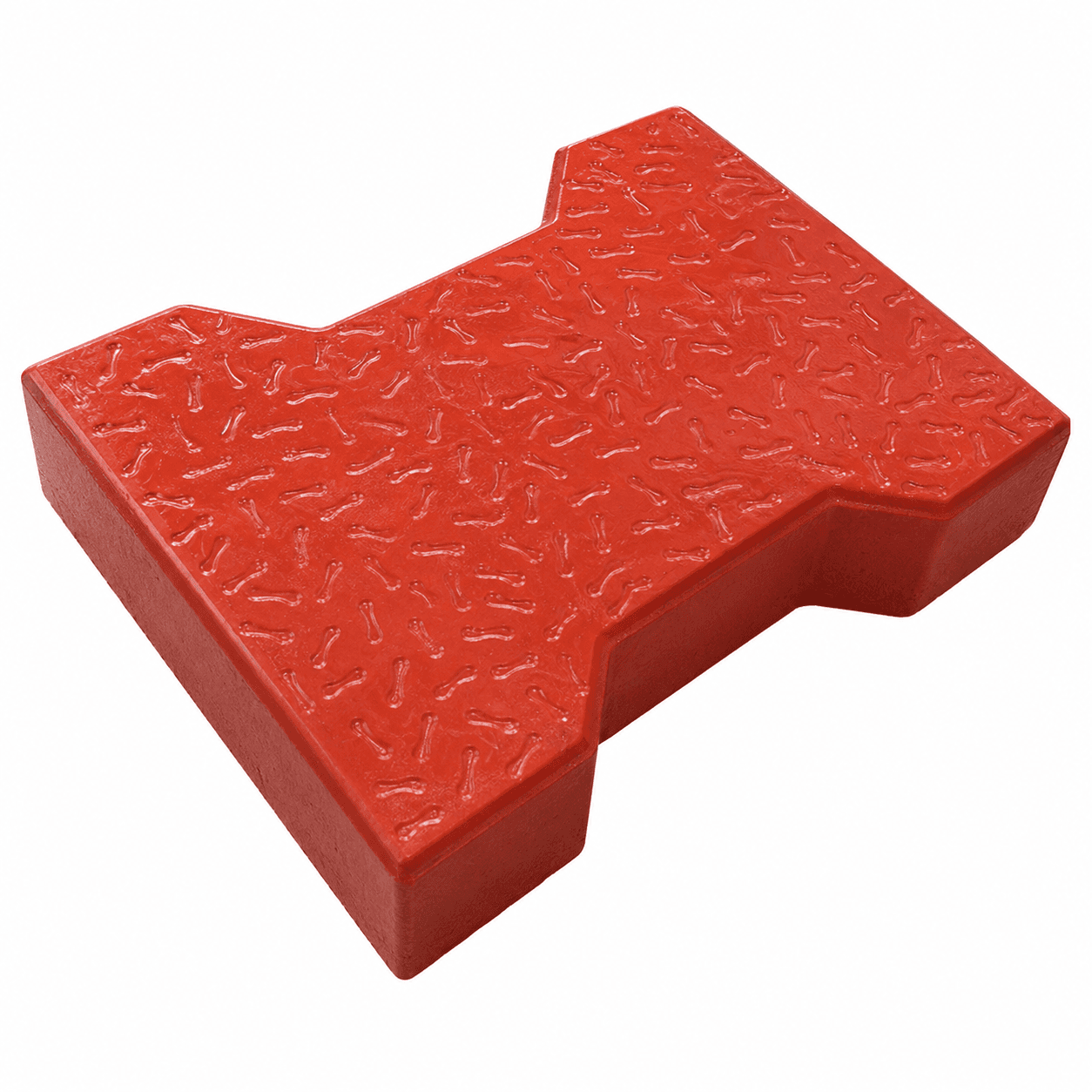

I Shape Paver Block 200 × 160 × 80 mm	15–20 s	24	5,760 blocks/hour
Grass Paving Block 444 × 315 × 80 mm	15–20 s	4	960 blocks/hour
Carb Stone 500 × 380 × 150 mm	15–20 s	4	960 pieces/hour

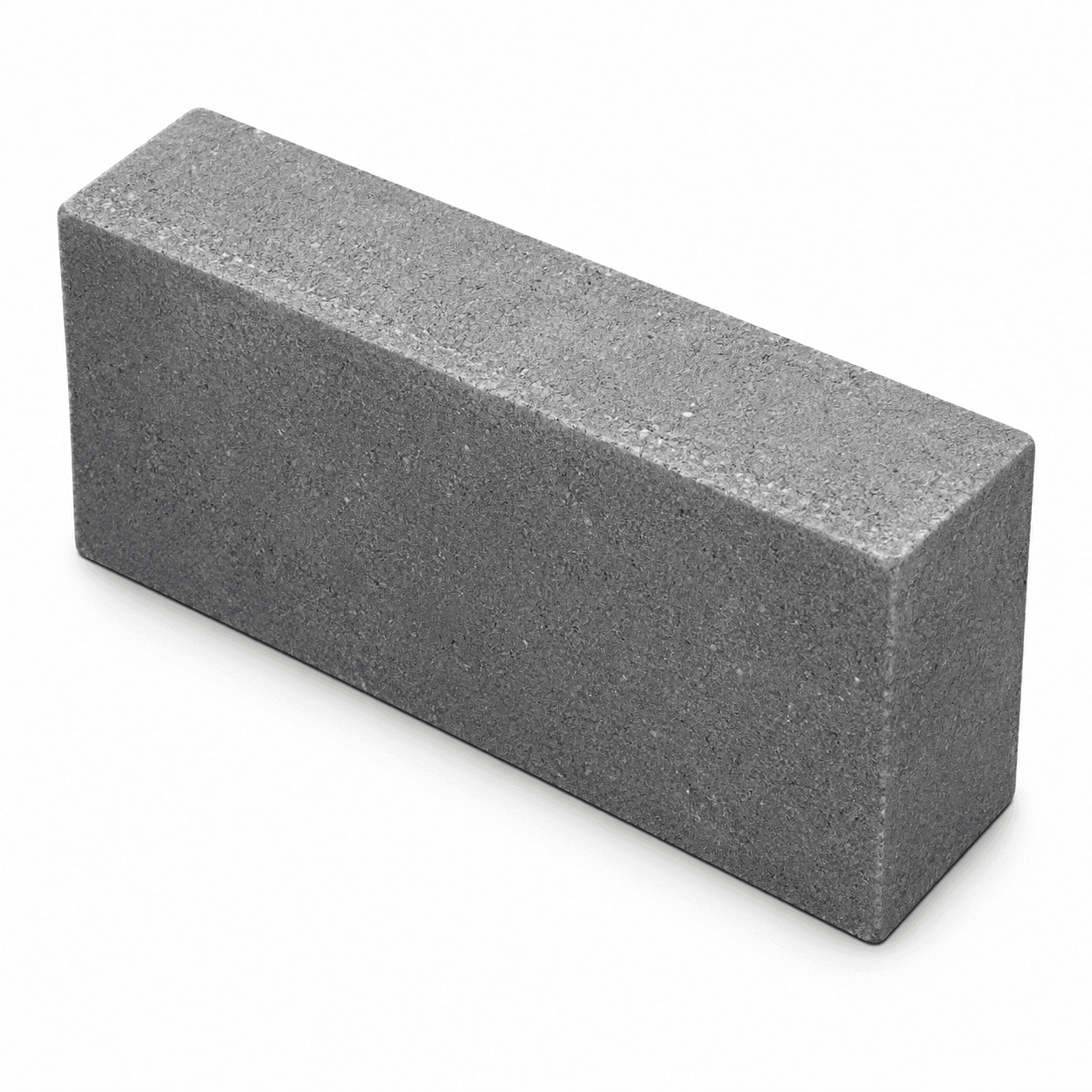

Edging Blcok 500 × 250 × 150 mm	15–20 s	6	1,440 pieces/hour
Drainage Block 200 × 200 × 400 mm	15–20 s	10	2,400 pieces/hour
Road Tiles 250 × 250 × 60 mm	15–20 s	12	2,880 tiles/hour
