Block Machine
QT2-120 Manual Egg-Laying Block Machine
The QT2-120 Manual Egg-Laying Block Machine is a compact and economical solution for producing concrete blocks directly on a prepared floor. Its manual operating system and integrated vibration unit make it suitable for small block factories, construction sites and startup businesses.
Product overview
Manual operating system
Egg-laying production design
Direct ground block production
Motor-driven vibration system
Lever-operated mould lifting
Wheel-mounted structure
Compact machine design
No production pallets required
Low initial investment
Easy operation and maintenance
Replaceable mould system
Suitable for small-scale production
Key specifications
- Model
- QT2-120
- Machine Type
- Manual Egg-Laying Block Machine
- Operation System
- Manual Lever Operation
- Production Method
- Direct Ground Production
- Movement System
- Wheel-Mounted
- Vibration Type
- Electric Motor Vibration
- Mould System
- Replaceable Mould
- Pallet Requirement
- No
- Material Feeding
- Manual
- Block Removal
- Manual Mould Lifting
- Required Floor
- Flat and Prepared Concrete Surface
- Application Scale
- Small-Scale Production
| Block Name & Size | Block Picture | Making Period | Produced Per Mould | Production Capacity / Per Hour |
|---|---|---|---|---|

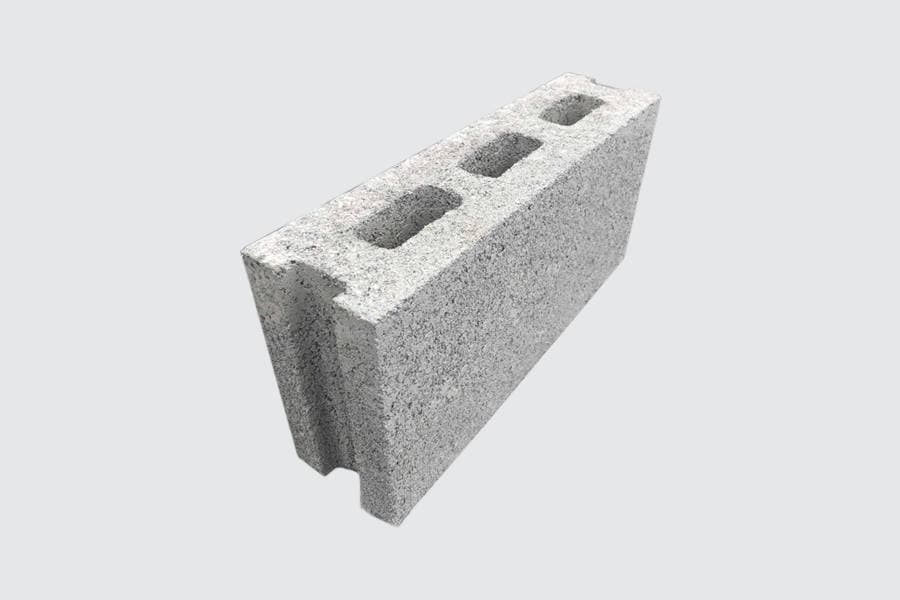

Hollow Block 390×190×100mm |  | 120 Sec | 4 | Production capacity varies by mould size and operator efficiency |

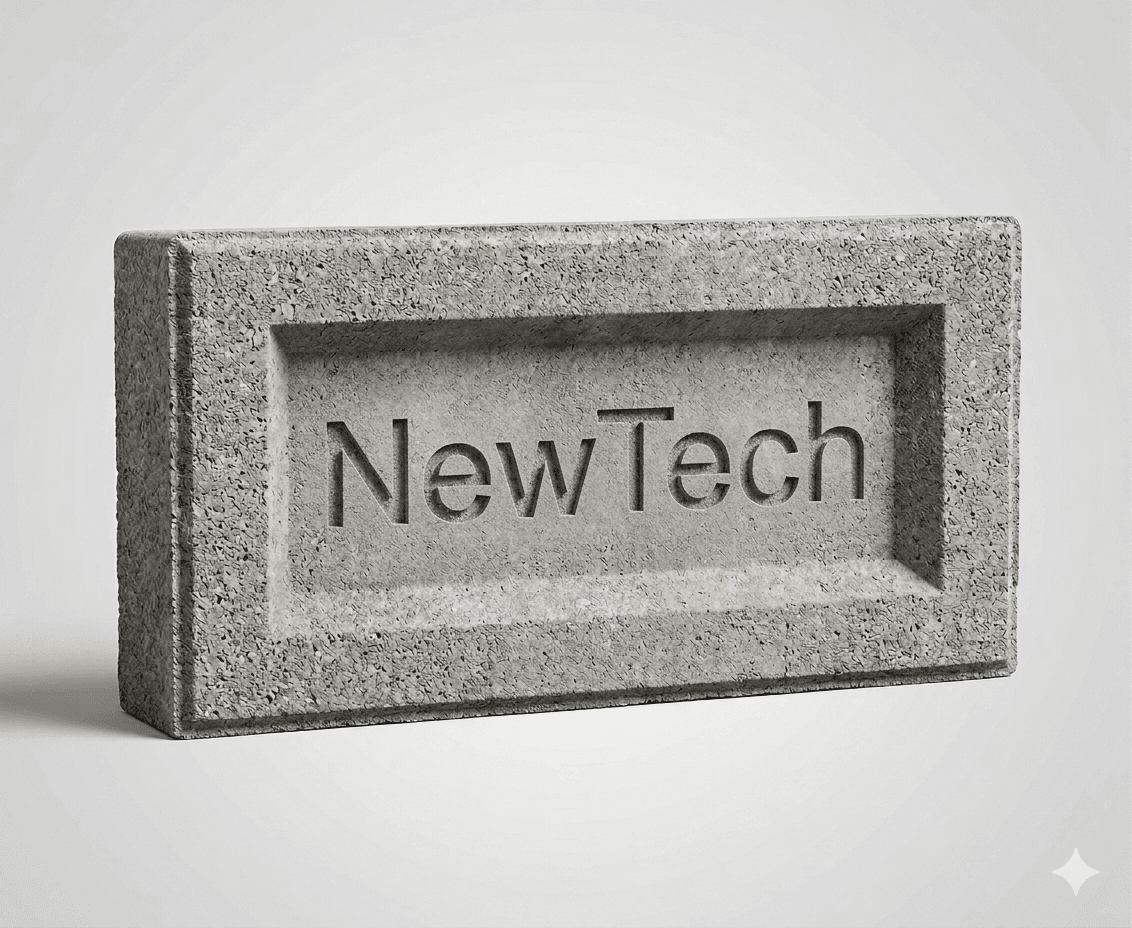

Solid Logo Bricks 240×115×70 mm |  | 120 sec | 6 | Production capacity varies by mould size and operator efficiency |

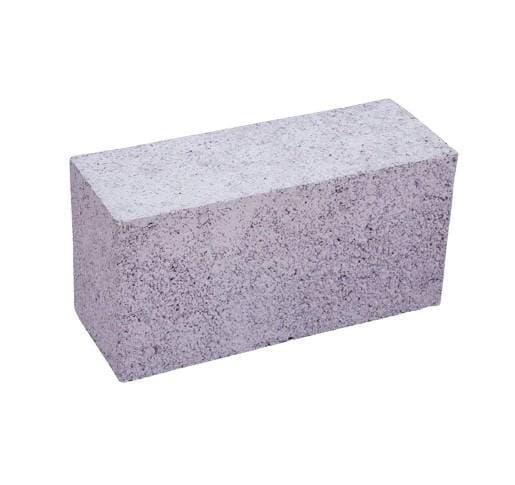

Solid Bricks 240×115×70 mm |  | 120 sec | 8 | Production capacity varies by mould size and operator efficiency |
