Product overview
The AAC Block Production Line is a fully integrated system featuring bucket elevator, lime/cement/gypsum silos, ball mill, slurry storage, PLC batching, high-speed pouring mixer, moulds, grouping conveyance, cutting machine, rolling-over table, turnover conveyor, steam generating boiler, autoclave, and steam distribution. Equipped with a 75KW cross impeller motor for rapid 3-minute mixing, tank raised by 300mm with triple-layer bearing seals, and automatic lubrication system. AAC blocks are 5x lighter than traditional concrete while maintaining structural integrity.

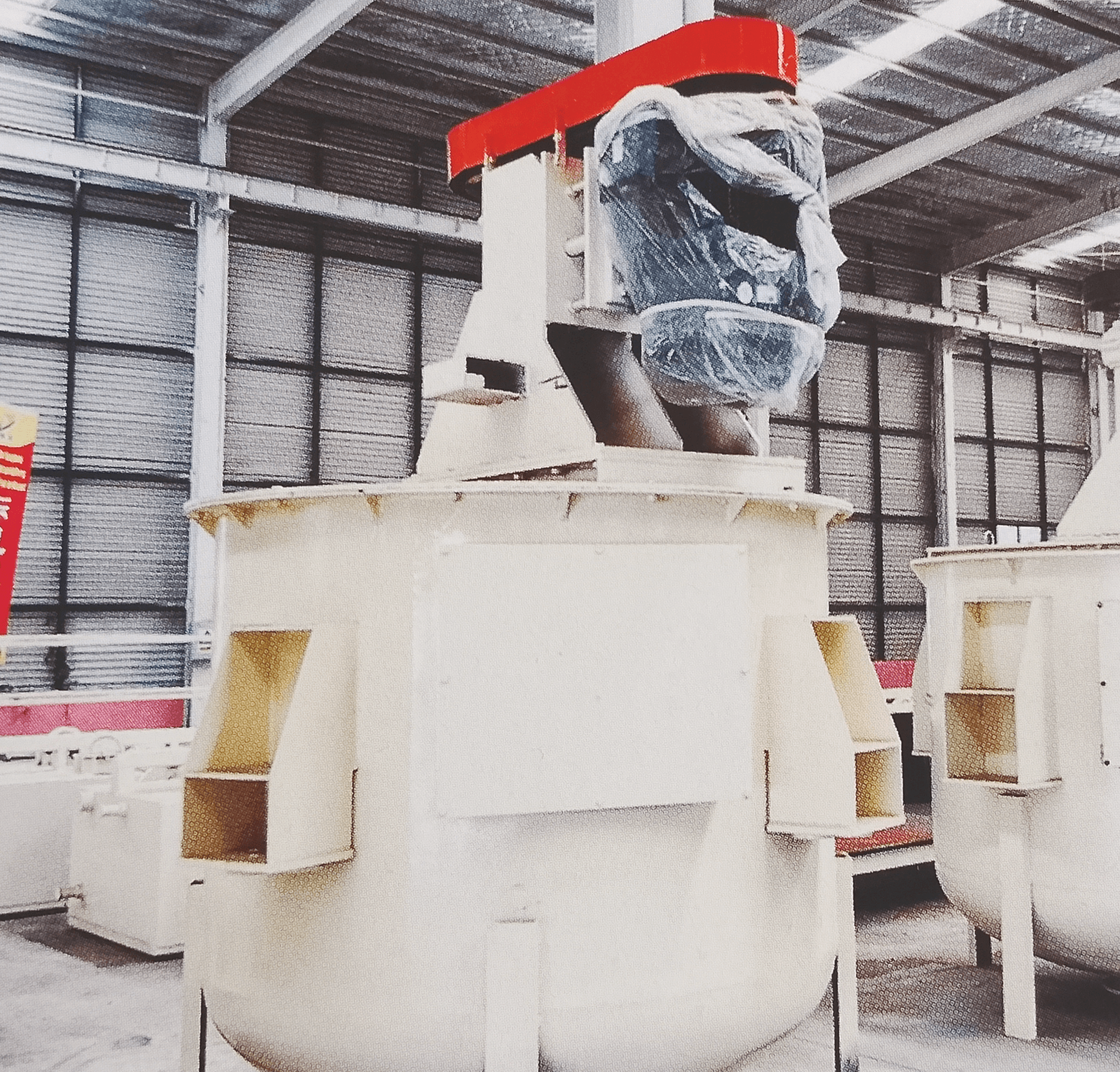

75KW cross impeller motor for 3-minute rapid mixing
Tank body raised by 300mm with triple-layer bearing seal
Automatic lubrication system with oil injection detection
Integrated autoclave steam curing system
PLC batch/batching system for precise proportions
SDOF cutting machine with 6-side precision cutting
Fixed trigger for post-autoclave block separation
Flip-over spreader for finished product handling
Full project consultancy - Installation & commissioning - Operator training
Key specifications
- Block Type
- Autoclaved Aerated Concrete (AAC)
- Density
- 400 - 800 kg/m³
- Pouring Mixer Motor
- 75 KW cross impeller
- Mixing Time
- 3 minutes per batch
- Curing
- Autoclave (high pressure steam)
- Cutting
- 6-side SDOF PLC intelligent cutting
- Production Scale
- 50,000 - 300,000 m³/year
- Components
- Bucket elevator, silos, ball mill, slurry tank, PLC batching, mixer, moulds, conveyor, cutting, autoclave
| Block Name & Size | Block Picture | Making Period | Produced Per Mould | Production Capacity / Per Hour |
|---|---|---|---|---|
AAC Block 600x200x100 | Batch | — | Varies by plant capacity | |
AAC Block 600x200x200 | Batch | — | Varies by plant capacity | |
AAC Block 600x200x300 | Batch | — | Varies by plant capacity |
Applications
High-rise construction
Energy-efficient buildings
Partition walls & infill panels
